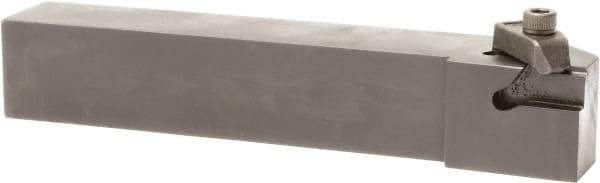

Sumitomo - SS, External, Left Hand, 0.14" Max Depth of Cut, Indexable Grooving Tool Holder - SG 2 Insert Compatibility, 1" Shank Height, 1" Shank Width, 5" OAL
Item #: 69451409
Brand: Sumitomo
Model #: U102143
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1400 |
| Overall Length (Decimal Inch) | 5.0000 |
| Toolholder Style | SS |
| Insert Compatibility | SG 2 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | SumiNotch |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Head Length (Decimal Inch) | 1.2500 |
| Complete Insert Compatibility | SG 2L; SG 2R |
