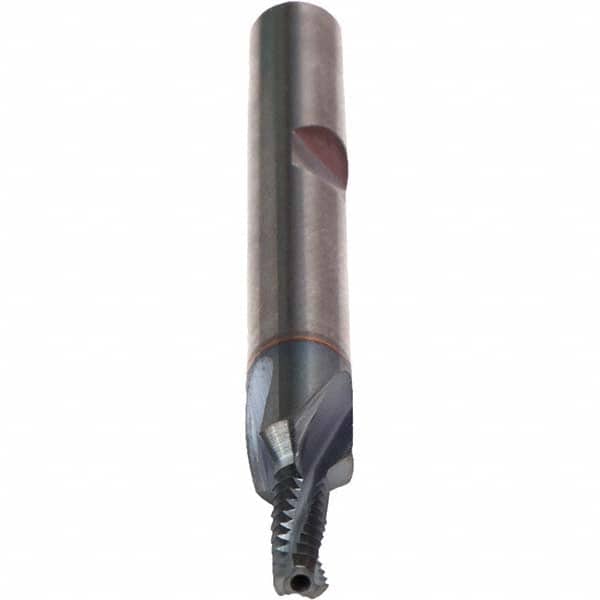

Helical Flute Thread Mill: Internal, 3 Flute, 1/4″ Shank Dia, Solid Carbide 0.183″ Cut Dia, 0.79″ LOC, 2.5″ OAL, TiCN Coated
Item #: 69372605
Brand: Emuge
Model #: GFR35106.0060
Product Specifications
| Pitch (mm) | 1.00 |
| Material | Solid Carbide |
| Thread Size (mm) | M6 x 1.00 |
| Thread Type | Internal |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Cutting Diameter (Decimal Inch) | 0.1830 |
| Minimum Nominal Diameter (mm) | 6.00 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Number Of Flutes | 3 |
| Coating/Finish | TiCN |
| Coolant Through | Yes |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7900 |
