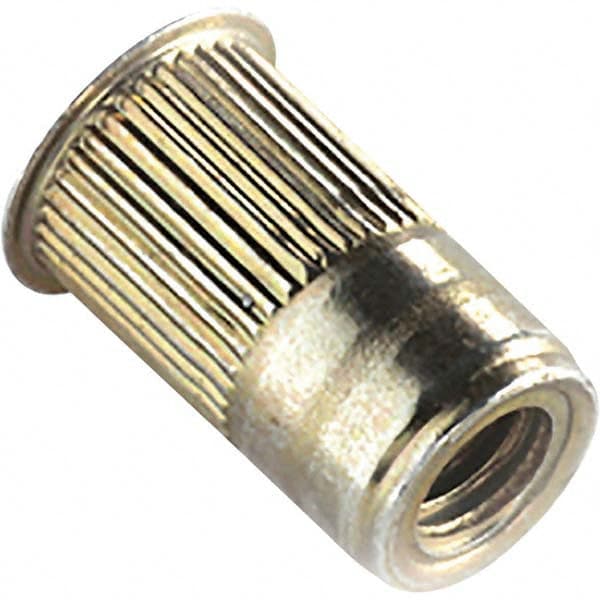

Press Fit Threaded Inserts; Product Type: Flanged; For Material Type: Metal; Material: Steel; System of Measurement: Inch; Overall Length (Decimal Inch): 0.4750; Thread Size: #10-32; Insert Diameter (Decimal Inch): 0.2960; Hole Diameter (Decimal Inch): 0.
Item #: 39407804
Brand: Made in USA
Model #: AKS4T-1032-130
Product Specifications
| Product Type | Flanged |
| Material | Steel |
| Thread Size | #10-32 |
| Overall Length (Decimal Inch) | 0.4750 |
| Insert Diameter (Decimal Inch) | 0.2960 |
| Hole Diameter (Decimal Inch) | 0.2969 in |
| Insert Diameter | 0.296 in |
| For Use On | Metal |
| Overall Length | 0.475 in |
| Head Diameter (Decimal Inch) | 0.415 |
| Head Height (Decimal Inch) | 0.03 in |
| Drill Size (Inch) | 19/64 |
| Thread Standard | UNC |
| UNSPSC Code | 31162802 |
