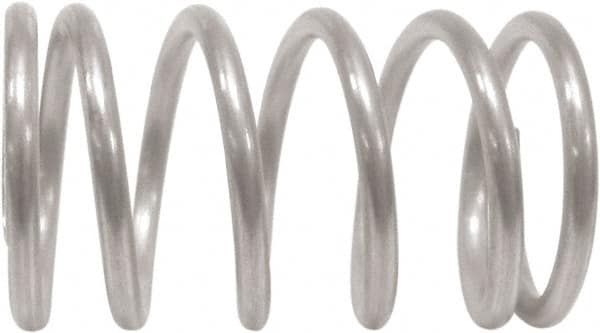

Compression Spring: 2.165″ OD, 16.142″ Free Length 5 mm Wire Dia, 654.26 N Max Load, Stainless Steel
Item #: 69093086
Brand: Associated Spring Raymond
Model #: D23970
Product Specifications
| Type | Compression |
| Outside Diameter (mm) | 54.99 |
| Outside Diameter (Decimal Inch) | 2.1650 |
| Outside Diameter (Inch) | 2.1650 |
| Free Length (Decimal Inch) | 16.1420 |
| Free Length (mm) | 410.01 |
| Free Length | 16.1420 |
| Material | Stainless Steel |
| Spring Rate Pounds per Inch | 13.08 in.lb |
| Spring Rate Newtons | 13.08 in.lb |
| Maximum Work Load (N) | 654.26000000 |
| Solid Height (Decimal Inch) | 4.0350 |
| Solid Height (mm) | 102.49 |
| Spring Rate | 13.08 in.lb |
| Wire Size (Decimal Inch) | 0.1970 |
| Wire Size (mm) | 5 |
