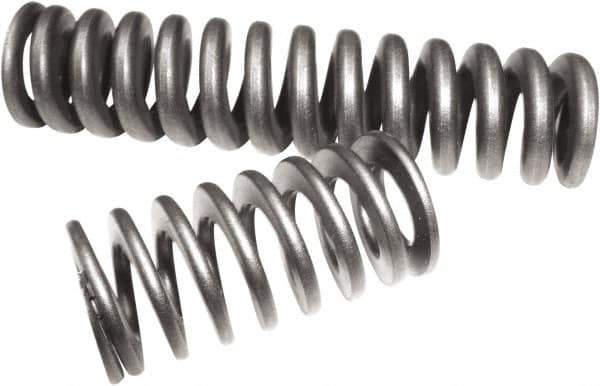

Associated Spring Raymond - 19.05mm OD, 3.175mm Wire, 152.4mm Free Length, Compression Spring - 160 Lb Spring Rating, 640.51 N Max Work Load, Chrome Alloy Steel
Item #: 69084812
Brand: Associated Spring Raymond
Model #: CV07506000125
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Compression |
| Outside Diameter (mm) | 19.05 |
| Outside Diameter (Decimal Inch) | 3/4 |
| Free Length (mm) | 152.40 |
| Free Length (Decimal Inch) | 6 |
| Spring Rate Pounds per Inch (Pounds) | 160.0000 |
| Maximum Work Load (N) | 640.51000977 |
| Solid Height (mm) | 106.68 |
| Solid Height (Decimal Inch) | 4.2000 |
| Material | Chrome Alloy Steel |
| Wire Size (mm) | 3.18 |
| Wire Size (Decimal Inch) | 1/8 |
