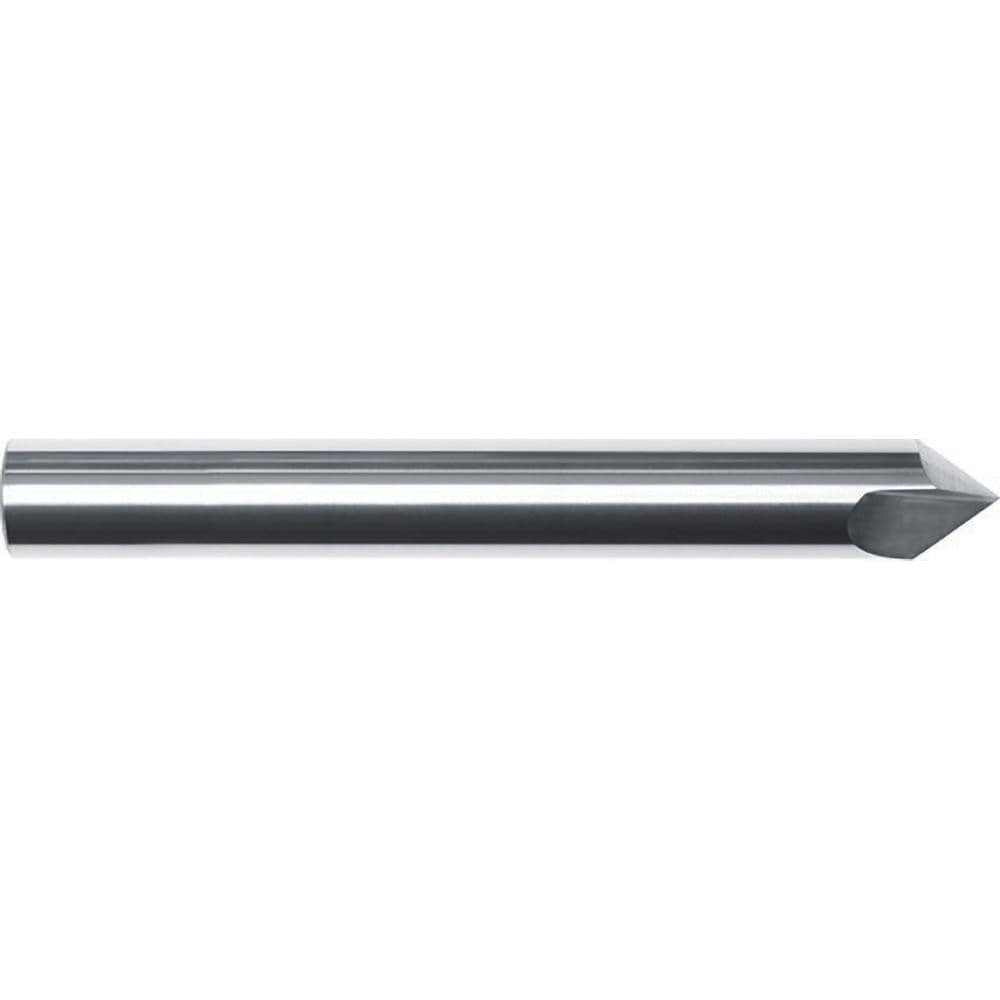

Chamfer Mill: 1/2" Dia, 1/2" Shank Dia, 40.00 deg, 2 Flute, Solid Carbide, Single End
Item #: 69415388
Brand: Internal Tool
Model #: 64-7275
Product Specifications
| Cutter Head Diameter (Fractional Inch) | 1/2 |
| Cutter Head Diameter (Decimal Inch) | 0.5000 |
| End Type | Single |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Shank Length (Decimal Inch) | 2.3400 |
| Overall Length (Inch) | 3 |
| Tool Application | Chamfering; Countersinking |
| Number Of Flutes | 2 |
| Cutting Direction | Right Hand |
| Series | 64 |
| Tapered | No |
| Coolant Through | No |
| Chamfer Mill Material | Solid Carbide |
| Material Application | Bronze; Low-Carbon Steel; Monel; Aluminum; Brass; Aluminum Alloy; Iron; Plastic; Nickel Base Alloy; Medium-Carbon Steel; Steel; Molybdenum; High-Nickel Steel; Magnesium Alloy; Stainless Steel; Cast Iron; Titanium; Magnesium; Copper; Copper Alloy |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6600 |
| Coating/Finish | Bright/Uncoated |
| Included Angle | 40.00 |
| UNSPSC Code | 23241600 |
| Cutter Head Diameter (Fractional Inch) | 1/2 |
| Cutter Head Diameter (Decimal Inch) | 0.5000 |
| End Type | Single |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Shank Length (Decimal Inch) | 2.3400 |
| Overall Length (Inch) | 3 |
| Tool Application | Chamfering; Countersinking |
| Number Of Flutes | 2 |
| Cutting Direction | Right Hand |
| Series | 64 |
| Tapered | No |
| Coolant Through | No |
| Chamfer Mill Material | Solid Carbide |
| Material Application | Bronze; Low-Carbon Steel; Monel; Aluminum; Brass; Aluminum Alloy; Iron; Plastic; Nickel Base Alloy; Medium-Carbon Steel; Steel; Molybdenum; High-Nickel Steel; Magnesium Alloy; Stainless Steel; Cast Iron; Titanium; Magnesium; Copper; Copper Alloy |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6600 |
| Coating/Finish | Bright/Uncoated |
| Included Angle | 40.00 |
| UNSPSC Code | 23241600 |
| MSC Part # | 69415388 |
| Mfr Part # | 64-7275 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
