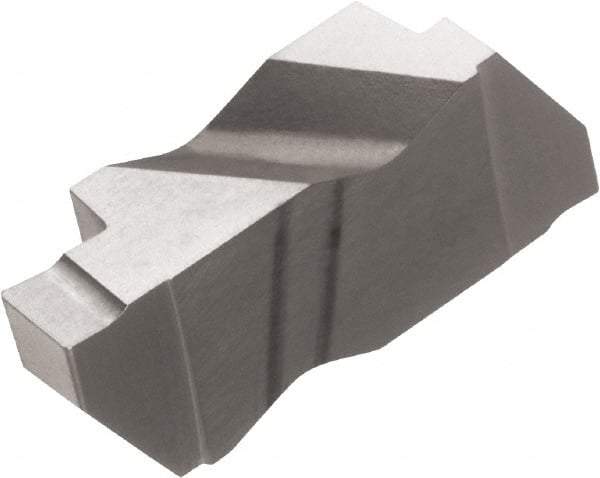

Kyocera - 3078KCGP Grade TC60, 0.078" Cutting Width Cermet Grooving Insert - 3/32" Max Depth of Cut, Right Hand, 0.008" Corner Radius, NbC Finish
Item #: 68739994
Brand: Kyocera
Model #: 8849727
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | KCGP |
| Insert Size | 3078 |
| Material | Cermet |
| Cutting Width (Decimal Inch) | 0.0780 |
| Maximum Depth of Cut (Decimal Inch) | 0.0940 |
| Manufacturer's Grade | TC60 |
| Coating | NbC |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (Decimal Inch) | 0.3440 |
| Relief Angle | 3 |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0080 |
| Overall Length (Decimal Inch) | 0.8100 |
| Series | KCGP |
| Rake Angle | 5 |
| Manufacturers Catalog Number | KCGP3078R |
| Included Angle | 55 |
| Insert Thickness (Decimal Inch) | 0.1950 |
