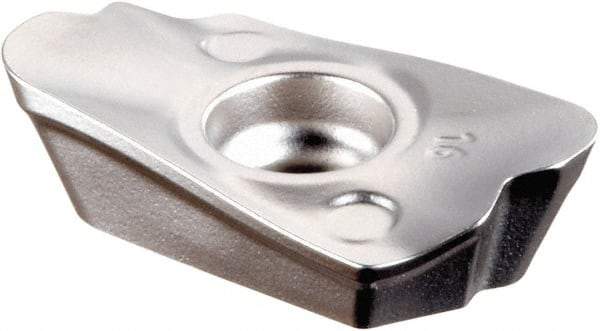

OSG - ZDKT150508 GM Grade XC1015 Carbide Milling Insert - TiCN/Al2O3 Finish, 5.56mm Thick, 0.8mm Corner Radius
Item #: 68560481
Brand: OSG
Model #: 7812029
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ZDKT |
| Insert Size | 150508 |
| Material | Carbide |
| Manufacturer's Grade | XC1015 |
| Coating | TiCN/Al2O3 |
| Width (mm) | 9.30 |
| Length (mm) | 14.00 |
| Thickness (mm) | 5.56 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | GM |
| Cutting Edge Style | Honed |
