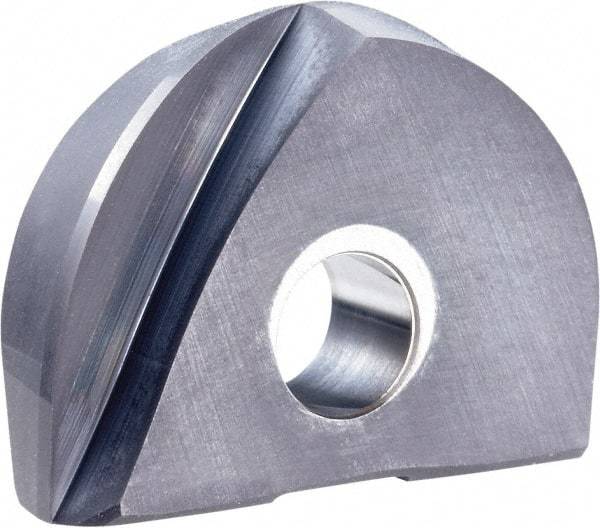

OSG - PFB0750 SP Grade XP3320 Carbide Milling Insert - 5mm Thick, 3/4" Inscribed Circle, 3/8" Corner Radius
Item #: 68559962
Brand: OSG
Model #: 52101014
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | PFB |
| Insert Size | 0750 |
| Material | Carbide |
| Manufacturer's Grade | XP3320 |
| Length (mm) | 15.00 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Thickness (mm) | 5.00 |
| Corner Radius (Decimal Inch) | 0.3750 |
| Coating Process | PVD |
| Shape | Ball Nose Rounded Tip |
| Chipbreaker | SP |
