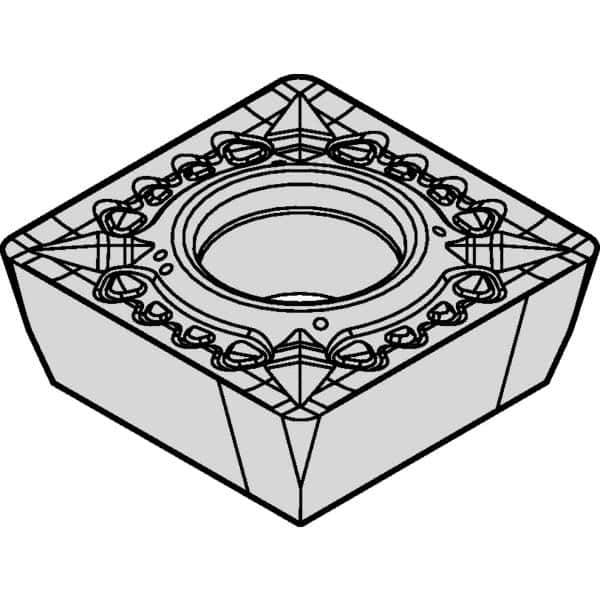

Kennametal - SDET4312 GB Grade KC725M Carbide Milling Insert - TiN/TiCN/TiN Finish, 3/16" Thick, 1/2" Inscribed Circle, 3/16" Corner Radius
Item #: 68467166
Brand: Kennametal
Model #: 5619962
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SDET |
| Insert Size | 4312 |
| Material | Carbide |
| Manufacturer's Grade | KC725M |
| Coating | TiN/TiCN/TiN |
| Width (Decimal Inch) | 0.5000 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.1880 |
| Corner Radius (mm) | 4.76 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | GB |
| Manufacturers Catalog Number | SDET4312SNGB |
