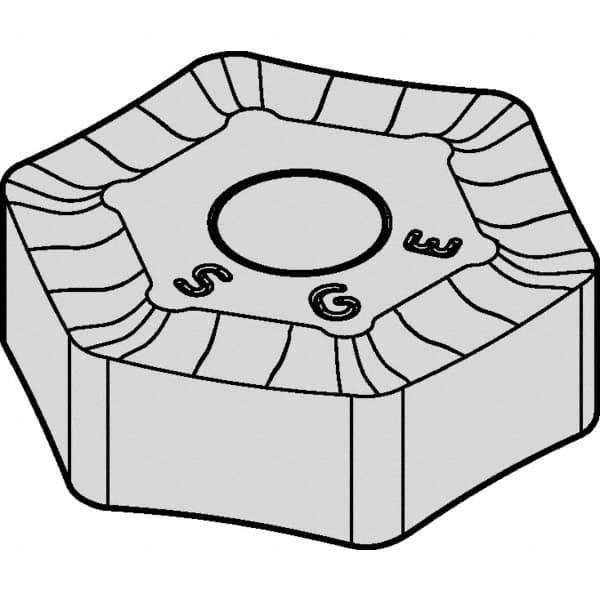

Kennametal - HNHX5355 GE Grade KC514M Carbide Milling Insert - TiAlN Finish, 0.219" Thick, 0.638" Inscribed Circle, 2mm Corner Radius
Item #: 68467059
Brand: Kennametal
Model #: 5615683
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNHX |
| Insert Size | 5355 |
| Material | Carbide |
| Manufacturer's Grade | KC514M |
| Coating | TiAlN |
| Length (Decimal Inch) | 0.3680 |
| Inscribed Circle (Decimal Inch) | 0.6380 |
| Thickness (Decimal Inch) | 0.2190 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Corner Radius (mm) | 2.00 |
| Hole Diameter (mm) | 5.00 |
| Hole Diameter (Decimal Inch) | 0.1970 |
| Relief Angle | 0.000 |
| Rake Angle | 15 |
| Included Angle | 120 |
| Shape | Hexagon |
| Insert Hand | Neutral |
| Chipbreaker | GE |
| Manufacturers Catalog Number | HNHX5355SNGE |
