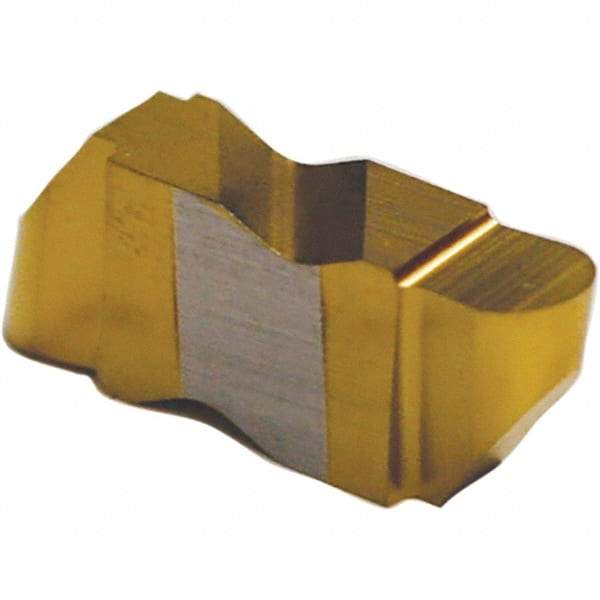

Tool-Flo - 4062FLRP Grade AC50C, 3.18mm Cutting Width Carbide Grooving Insert - 6.35mm Max Depth of Cut, Left Hand, 1.57mm Corner Radius, AlTiN Finish
Item #: 68354828
Brand: Tool-Flo
Model #: 594862LAC50C
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FLRP |
| Insert Size | 4062 |
| Material | Carbide |
| Cutting Width (mm) | 3.18 |
| Cutting Width (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | AC50C |
| Coating | AlTiN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (Decimal Inch) | 0.4530 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 1.57 |
| Corner Radius (Decimal Inch) | 0.0620 |
| Coating Process | PVD |
| Series | Flo-Lock |
| Rake | Positive |
| Manufacturers Catalog Number | FLRP-4062L |
| Insert Thickness (Decimal Inch) | 0.2550 |
