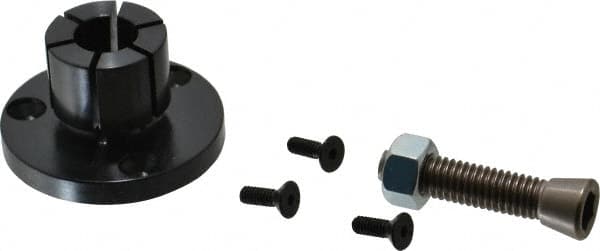

Mitee-Bite - 0.71 to 1.06" Expansion Diam, 4,500 Lb Holding Force, 8-32 Mounting Screw, 3/8-16 Center Screw, Mild Steel ID Expansion Clamps
Item #: 68082940
Brand: Mitee-Bite
Model #: 31200
Product Specifications
| Flange Diameter (Decimal Inch) | 1.9680 |
| Maximum Expansion Diameter (Decimal Inch) | 1.0600 |
| Minimum Expansion Diameter (Decimal Inch) | 0.7100 |
| Holding Force (Lb.) | 4500.00 |
| Center Screw Thread Size | 3/8-16 |
| Mounting Screw Thread Size | 8-32 |
| Material | Mild Steel |
| Mount Hole Diameter (Decimal Inch) | 1.5500 |
| Flange Thickness (Decimal Inch) | 0.2500 |
| Expansion Height (Decimal Inch) | 0.6900 |
| Height Above Flange (Decimal Inch) | 0.8800 |
| Overall Height (Decimal Inch) | 1.1300 |
| Number of Mount Holes | 3 |
| Thread Length Below Base (Decimal Inch) | 0.7100 |
| Torque (Ft/Lb) | 49.30 |
