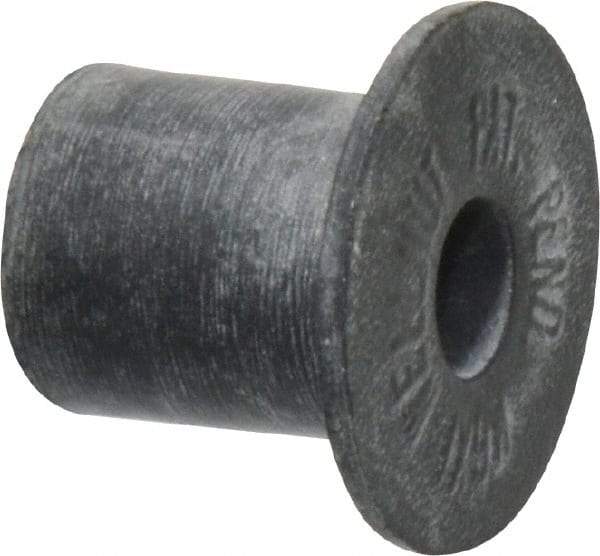

Au-Ve-Co Products - M6x1.00, 0.787" Diam x 0.051" Thick Flange, Rubber Insulated Rivet Nut - Metric Coarse Thread, Neoprene, 0.579" Long x 1/2" Body Diam, 0.63" OAL
Item #: 67741926
Brand: Au-Ve-Co Products
Model #: 13002
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System of Measurement | Metric |
| Thread Size (mm) | M6x1.00 |
| Body Diameter (Decimal Inch) | 0.5000 |
| Body Length (Decimal Inch) | 0.5790 |
| Flange Diameter (Decimal Inch) | 0.7870 |
| Overall Length (Decimal Inch) | 0.6300 |
| Drill Size (Inch) | 1/2 |
| Minimum Grip (Decimal Inch) | 0.0150 |
| Maximum Grip (Decimal Inch) | 0.0940 |
| Flange Thickness (Decimal Inch) | 0.0510 |
| Nut Material | Brass |
| Body Material | Neoprene |
| Thread Standard | Metric Coarse |
