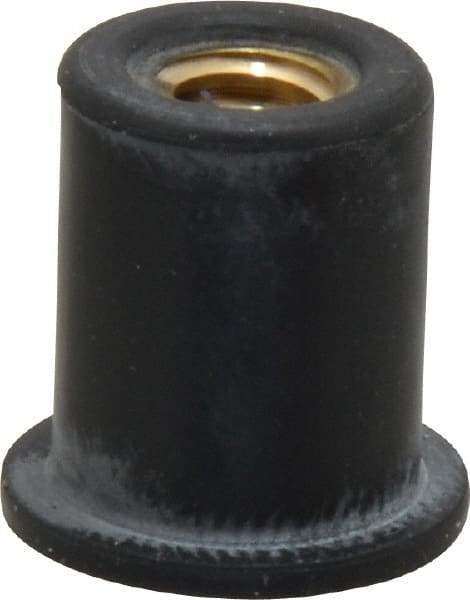

Au-Ve-Co Products - 1/4-20, 5/8" Diam x 0.051" Thick Flange, Rubber Insulated Rivet Nut - UNC Thread, Neoprene, 19/32" Long x 1/2" Body Diam, 0.641" OAL
Item #: 67741769
Brand: Au-Ve-Co Products
Model #: 13004
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size (Inch) | 1/4-20 |
| Body Diameter (Decimal Inch) | 0.5000 |
| Body Length (Decimal Inch) | 0.5940 |
| Flange Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 0.6410 |
| Drill Size (Inch) | 1/2 |
| Minimum Grip (Decimal Inch) | 0.0150 |
| Maximum Grip (Decimal Inch) | 0.1110 |
| Flange Thickness (Decimal Inch) | 0.0510 |
| Nut Material | Brass |
| Body Material | Neoprene |
| Thread Standard | UNC |
