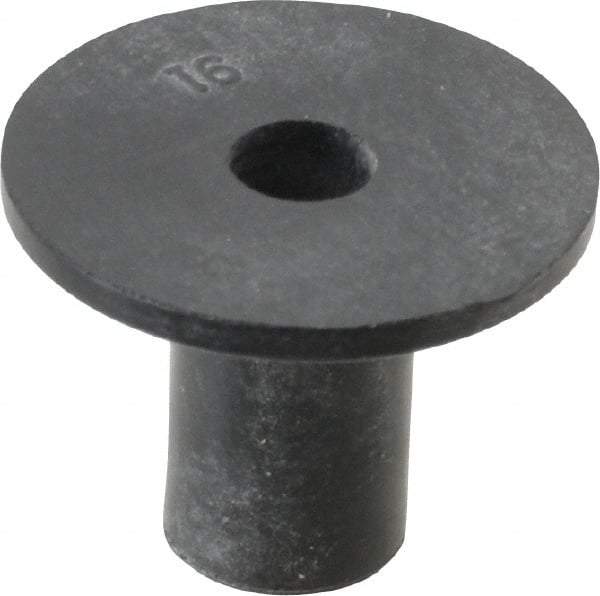

Au-Ve-Co Products - #8-32, 3/4" Diam x 0.062" Thick Flange, Rubber Insulated Rivet Nut - UNC Thread, Neoprene, 1/2" Long x 5/16" Body Diam, 0.575" OAL
Item #: 67741645
Brand: Au-Ve-Co Products
Model #: 13005
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size (Inch) | #8-32 |
| Body Diameter (Decimal Inch) | 0.3120 |
| Body Length (Decimal Inch) | 0.5000 |
| Flange Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 0.5750 |
| Drill Size (Inch) | 5/16 |
| Minimum Grip (Decimal Inch) | 0.0150 |
| Maximum Grip (Decimal Inch) | 0.1720 |
| Flange Thickness (Decimal Inch) | 0.0620 |
| Nut Material | Brass |
| Body Material | Neoprene |
| Thread Standard | UNC |
