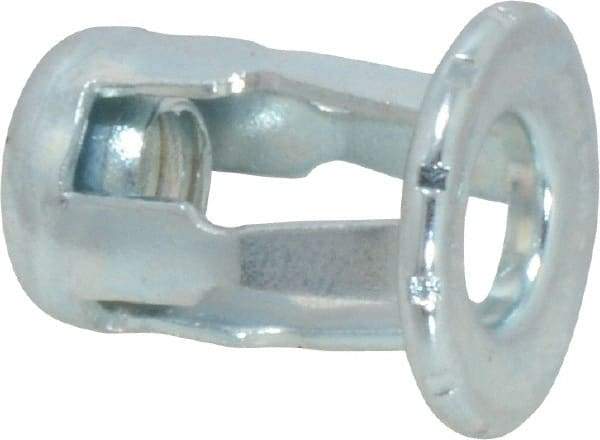

Au-Ve-Co Products - 1/4-20 UNC Thread, Zinc Plated, Steel, Screwdriver Installed Rivet Nut - 1/64 to 3/16" Grip, 5/8" Flange Diam, 0.731" Long
Item #: 67741363
Brand: Au-Ve-Co Products
Model #: 13016
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size (Inch) | 1/4-20 |
| Minimum Grip (Decimal Inch) | 0.0156 |
| Minimum Grip (Inch) | 1/64 |
| Maximum Grip (Decimal Inch) | 0.1875 |
| Maximum Grip (Inch) | 3/16 |
| Flange Diameter (Decimal Inch) | 0.6250 |
| Flange Thickness (Decimal Inch) | 0.0730 |
| Overall Length (Decimal Inch) | 0.7310 |
| Material | Steel |
| Finish/Coating | Zinc-Plated |
| Body Diameter (Decimal Inch) | 0.4380 |
| Thread Standard | UNC |
