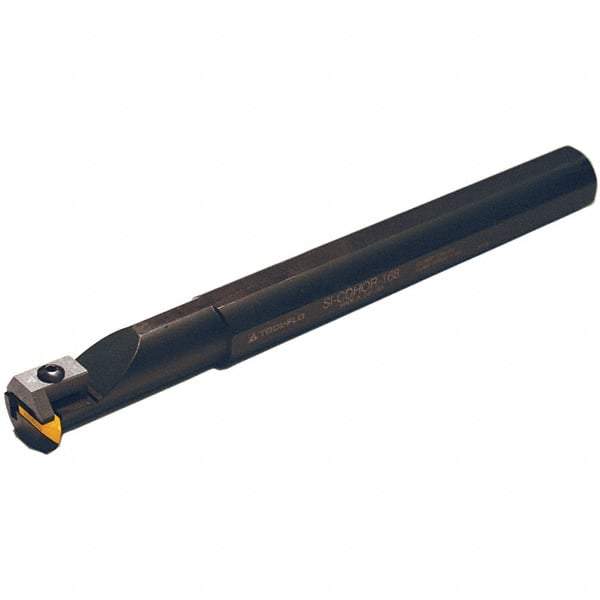

Tool-Flo - SI-CDHOL, Internal, Left Hand, 0.27" Max Depth of Cut, Indexable Grooving Tool Holder - V84, V85 Insert Compatibility, 1" Shank Width, 10" OAL
Item #: 67260901
Brand: Tool-Flo
Model #: 96701682
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2700 |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10.0000 |
| Toolholder Style | SI-CDHOL |
| Insert Compatibility | V84; V85 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Vee Bottom |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Clamp |
| Maximum Bore Depth (Decimal Inch) | 0.2000 |
| Center to Cutting Edge (Decimal Inch) | 0.6870 |
| Manufacturers Catalog Number | SI-CDHOL-168 |
| Complete Insert Compatibility | V84 10RD EXT; V84 5 VAM EXT; V84 5B75 EXT-FC; V84 5XL12 EXT; V84 8NPT EXT; V84 NGC W.062; V84 NGL W.125; V84 NT 3P; V84 NT 3P STUB; V84 NV; V85 425 EXT; V85 425 INT; V85 4PAC EXT; V85 4PAC INT; V85 H902 EXT; V85 NGC W.312; V85 NT 2P; V85 NT 2P STUB; V85 N |
| Minimum Bore Diameter (Decimal Inch) | 2.5000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
