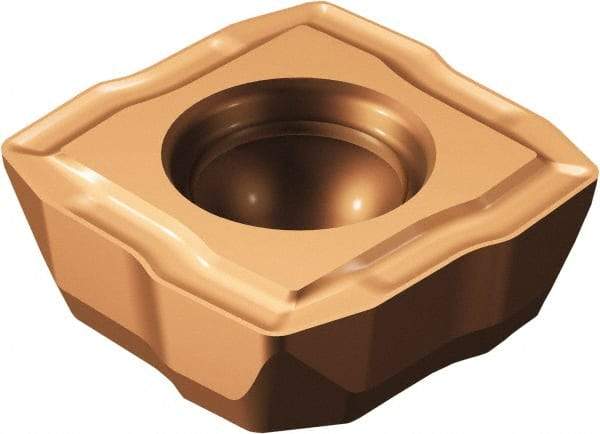

Sandvik Coromant - 88006C LM Grade 1144 Carbide Indexable Drill Insert - TiAlN/AlCr2O3 Finish, Square, 10.2mm Inscribed Circle
Item #: 67054239
Brand: Sandvik Coromant
Model #: 5765753
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 880 |
| Insert Size | 06C |
| Material | Carbide |
| Manufacturer's Grade | 1144 |
| Inscribed Circle (mm) | 10.20 |
| Inscribed Circle (Decimal Inch) | 0.4016 |
| Thickness (mm) | 3.50 |
| Thickness (Decimal Inch) | 0.1378 |
| Corner Radius (mm) | 0.60 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Shape | Square |
| Width (Decimal Inch) | 0.4016 |
| Width (mm) | 10.20 |
| Length (mm) | 10.20 |
| Length (Decimal Inch) | 0.4016 |
| Hole Diameter (mm) | 4.00 |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Coating | TiAlN/AlCr2O3 |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | LM |
