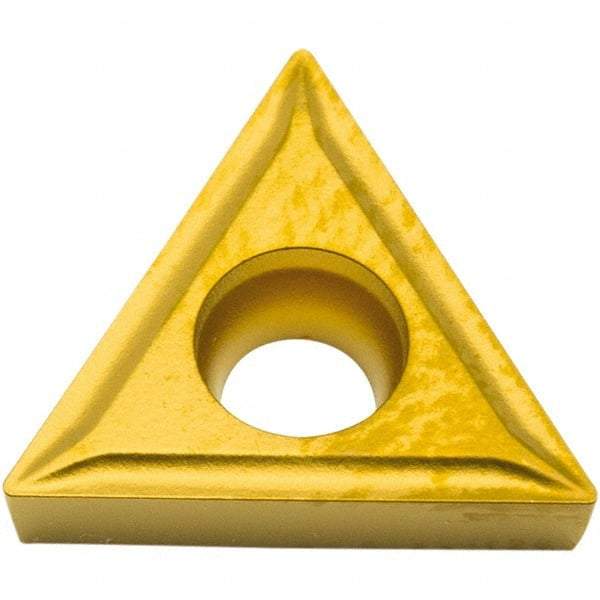

Parlec - Boring Inserts Material: Carbide Insert Style: TCMT
Item #: 66821299
Brand: Parlec
Model #: T161615C2P
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
Product Specifications
Boring Inserts; Material: Carbide ; Insert Style: TCMT ; Insert Size: 161615 ; Material Grade: C2 ; Manufacturer's Grade: C2 ; Inscribed Circle (Inch): 3/8
| Material | Carbide |
| Insert Style | TCMT |
| Insert Size | 161615 |
| Material Grade | C2 |
| Manufacturer's Grade | C2 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Coating | Uncoated |
| Width (mm) | 16.00 |
| Width (Decimal Inch) | 0.6300 |
| Rake | Positive |
| Insert Holding Method | Screw |
| Shape | Triangle |
