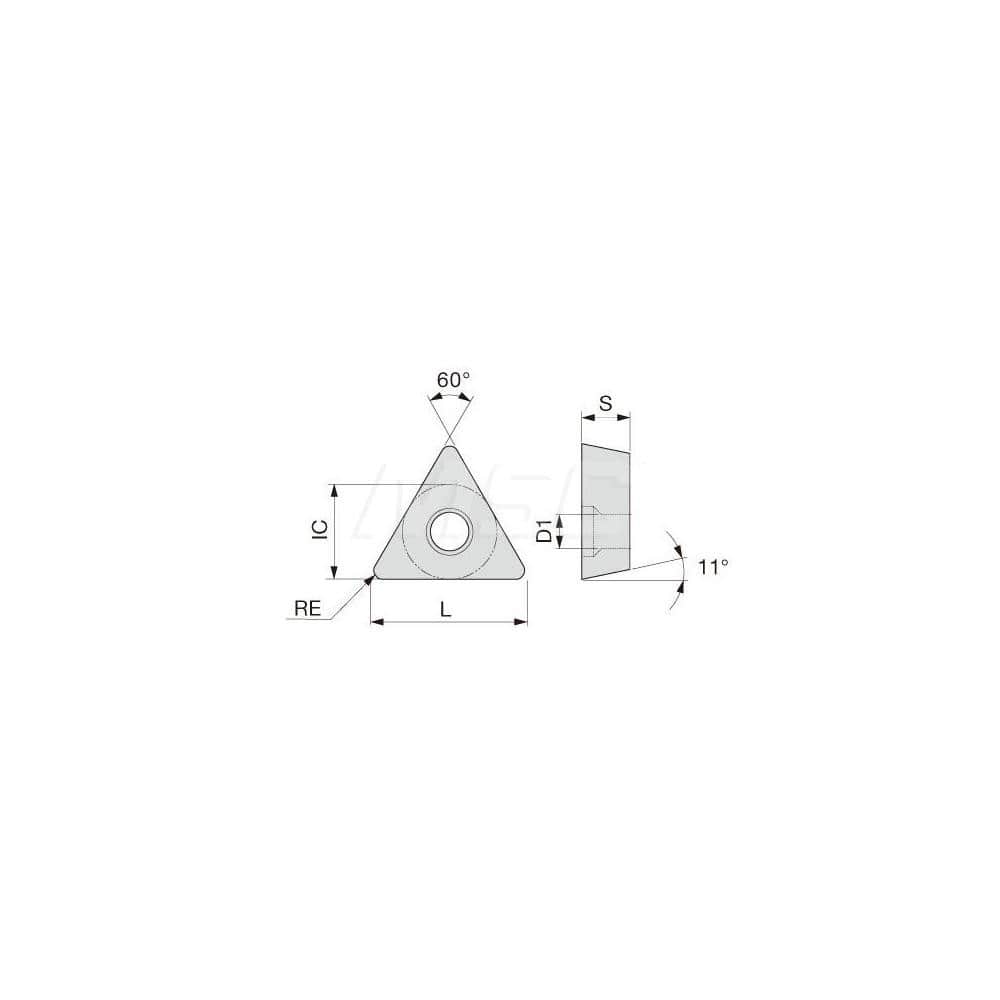

Turning Insert: TPMT2.521PSF AH725, Solid Carbide TiAlN Finish, Neutral, 0.0160″ Corner Radius, 60.0 ° N/A Triangle, Series TPMT
Item #: 66805664
Brand: Tungaloy
Model #: 6865482
Product Specifications
| Insert Style | TPMT |
| Insert Size Code | 2.521 |
| Insert Shape | Triangle |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH725 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Inscribed Circle (Decimal Inch) | 0.3130 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | TPMT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | TPMT2.521PSFAH725 |
| Iso Code | TPMT130304-PSF AH725 |
| Chip Breaker | PSF |
| Coating/Finish | TiAlN |
