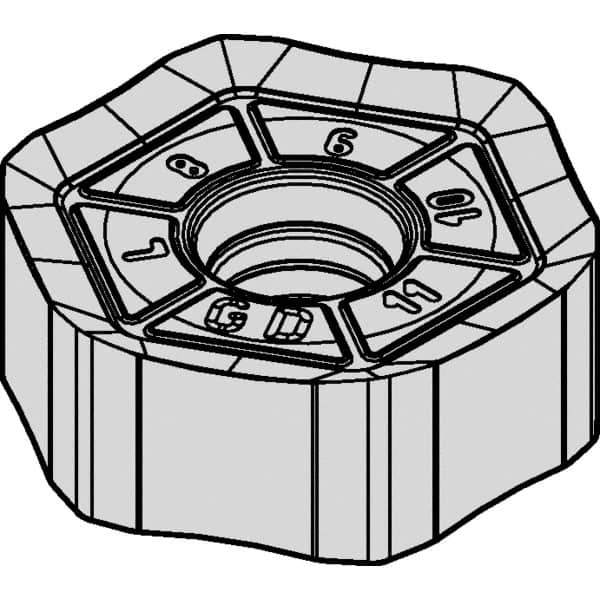

Kennametal - HNPJ43 GD Grade KCPM40 Carbide Milling Insert - AlCrTiN Finish, 4.45mm Thick, 12mm Inscribed Circle, 1mm Corner Radius
Item #: 66353202
Brand: Kennametal
Model #: 5550703
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNPJ |
| Insert Size | 43 |
| Material | Carbide |
| Manufacturer's Grade | KCPM40 |
| Coating | AlCrTiN |
| Length (mm) | 6.44 |
| Inscribed Circle (mm) | 12.00 |
| Thickness (mm) | 4.45 |
| Corner Radius (mm) | 1.00 |
| Hole Diameter (mm) | 5.00 |
| Coating Process | PVD |
| Shape | Hexagon |
| Insert Hand | Neutral |
| Chipbreaker | GD |
| Manufacturers Catalog Number | HNPJ43ANSNGD |
| Cutter Series Compatibility | Dodeka |
