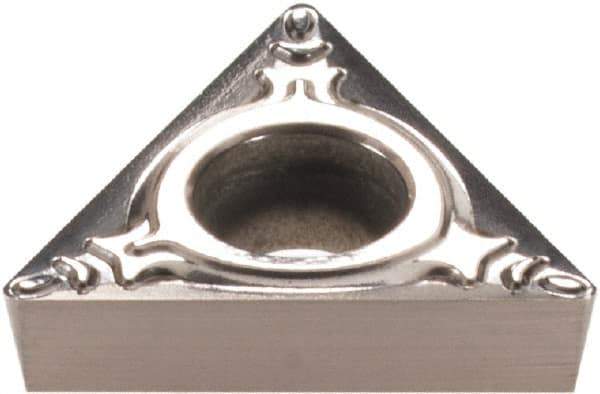

Komet - TOGX140304 14 Grade CK3210 Cermet Boring Insert - Uncoated, 60° Triangle, 8° Relief Angle, 8.2mm Inscr Circle, 3mm Thick, 0.41mm Corner Radius
Item #: 66218520
Brand: Komet
Model #: W5726140043210
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal. It can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Material | Cermet |
| Insert Style | TOGX |
| Insert Size | 140304 |
| Manufacturer's Grade | CK3210 |
| Inscribed Circle (mm) | 8.20 |
| Inscribed Circle (Decimal Inch) | 0.3230 |
| Thickness (mm) | 3.00 |
| Thickness (Decimal Inch) | 0.1180 |
| Corner Radius (mm) | 0.41 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Coating | Uncoated |
| Chipbreaker | 14 |
| Length (mm) | 13.61 |
| Length (Decimal Inch) | 0.5360 |
| Rake | Positive |
| Rake Angle | 14 |
| Relief Angle | 8 |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Shape | Triangle |
