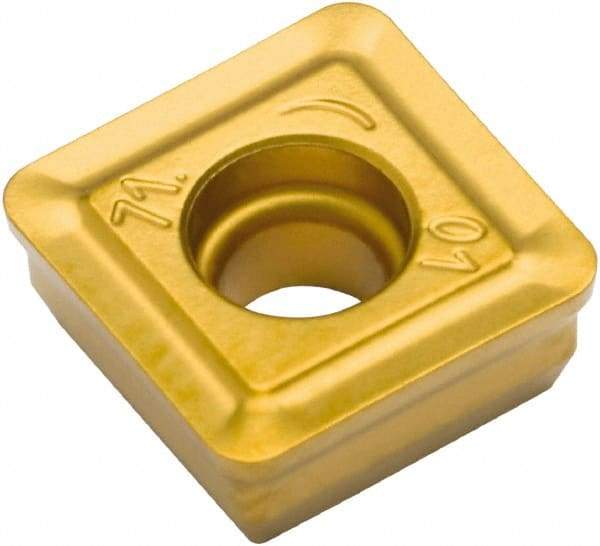

Komet - SOGX07T208 01 Grade BK7710 Carbide Indexable Drill Insert - TiB2 Finish, Square, 7.1mm Inscribed Circle
Item #: 66193368
Brand: Komet
Model #: W8020010087710
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium diboride (TIB2) is a corrosion-resistant ceramic compound made of titanium and boron. It is commonly used on non-ferrous materials including aluminum and magnesium alloys.
| Product Specifications | |
|---|---|
| Insert Style | SOGX |
| Insert Size | 07T208 |
| Material | Carbide |
| Manufacturer's Grade | BK7710 |
| Inscribed Circle (mm) | 7.10 |
| Inscribed Circle (Decimal Inch) | 0.2795 |
| Thickness (mm) | 2.97 |
| Thickness (Decimal Inch) | 0.1169 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Square |
| Relief Angle | 9 |
| Included Angle | 90 |
| Coating | TiB2 |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Chipbreaker | 01 |
