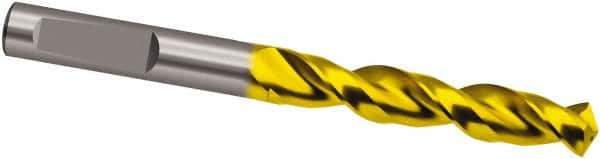

Jobber Length Drill Bit: 0.7677″ Dia, 130 °, Cobalt TiN Finish, Right Hand Cut, Parabolic Flute
Item #: 65849820
Brand: Guhring
Model #: 9011320195000
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.7677 |
| Drill Bit Size (mm) | 19.50 |
| Drill Bit Material | Cobalt |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiN |
| Drill Point Angle (Degrees) | 130 |
| Spiral Type | Regular |
| Flute Type | Parabolic |
| Point Type | Cone Relief |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Overall Length (mm) | 153.00 |
| Flute Length (mm) | 101.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 20.00 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.6500+ |
| Drill Bit Size Range (mm) | 15.00 |
| Specification Designation | DIN |
