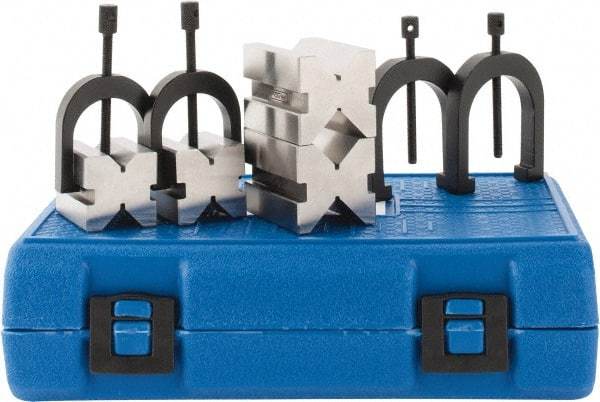

Fowler - 1 to 1-1/2" Capacity, 90° Angle, 4-Way V-Block - 1-1/2 and 2" Long x 1-1/4 and 1-1/2" Wide x 1-1/4 and 1-1/2" High, Sold as 2 Block Set
Item #: 65002222
Brand: Fowler
Model #: 52-475-500
Exact Tooling IR#: 04
Features and Benefits
4-Way V-Blocks are designed with four different sized V-grooves in the block for different sized workholding operations. They used for detecting and inspecting cylindrical parts and are ground and machined square and parallel.
| Product Specifications | |
|---|---|
| Type | 4-Way V-Block |
| Sold As | 2 Block Set |
| Overall Length (Inch) | 1-1/2; 2 |
| Overall Width (Inch) | 1-1/4; 1-1/2 |
| Overall Height (Inch) | 1-1/4; 1-1/2 |
| V Angle | 90.00 |
| Minimum Capacity of V (Inch) | 1 |
| Maximum Capacity of V (Inch) | 1-1/2 |
| Squareness Per 1 Inch (Decimal Inch) | 0.0005 |
| Parallelism (Decimal Inch) | 0.0005 |
| V Parallelism (Decimal Inch) | 0.0005 |
| Magnetic | No |
| Includes | Case |
