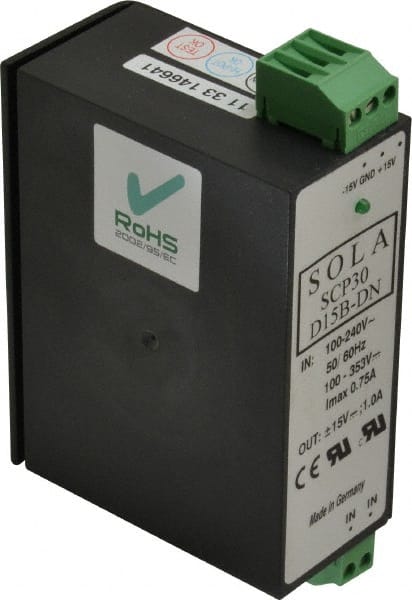

Sola/Hevi-Duty - 30 Watt, 1 Amp, 264 VAC, 375 VDC Input, +15/ to 15 VDC Output, Chassis, DIN Rail Power Supply
Item #: 64911928
Brand: Sola/Hevi-Duty
Model #: SCP30D15B-DN
Product Specifications
| Mounting Type | Chassis; DIN Rail |
| Output Wattage | 30 |
| Maximum Input Voltage | 264 VAC; 375 VDC |
| Minimum Input Voltage | 100 VDC; 85 VAC |
| Number of Outputs | 2 |
| Output Voltage | +15/-15 VDC |
| Output Amperage | 1 |
| Number of Phases | 2 |
| Connection Type | Screw Clamp |
| Hold-up Time (ms) | 50 |
| Efficiency | >68% |
| Maximum Operating Temperature (F) | 149 |
| Minimum Operating Temperature (F) | -13 |
| Ingress Protection Rating | IP20 |
| Status Indicator | DC OK for B-DN Slim; Green LED Indicates |
| Overall Height (mm) | 113 |
| Overall Height (Decimal Inch) | 4.4300 |
| Overall Width (mm) | 35 |
| Overall Width (Decimal Inch) | 1.3700 |
| Overall Depth (mm) | 68 |
| Overall Depth (Decimal Inch) | 2.6700 |
| Protection Features | Over Voltage Protection; Short Circuit Protection |
| Standards Met | CE; cURus UL Recognized |
