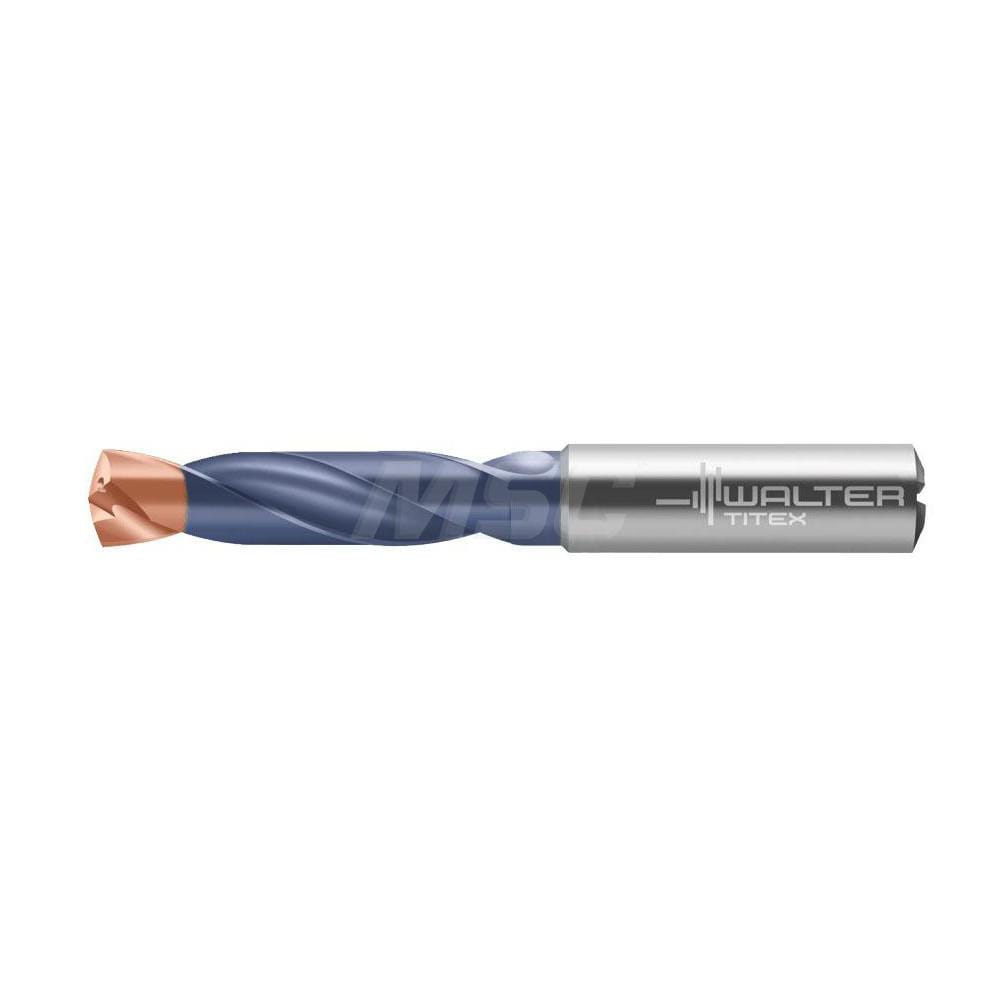

Screw Machine Length Drill Bit: 3.50 mm Dia, 140 deg Point, Solid Carbide
Item #: 52642873
Brand: Walter-Titex
Model #: 5537130
Product Specifications
| Drill Bit Size (mm) | 3.50 |
| Drill Bit Size (Decimal Inch) | 0.1378 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials |
| Point Type | Standard |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Drill Tip Finish/Coating | Double Coating |
| Overall Length (mm) | 62.00 |
| Overall Length (Decimal Inch) | 2.4409 |
| Shank Diameter (mm) | 6.00 |
| Series | A3289DPL |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | DPL (TiAlN (AlCrN)) |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.5512 |
| Maximum Drilling Depth (mm) | 14.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Drill Point Length (mm) | 0.64 |
| Drill Point Length (Decimal Inch) | 0.0251 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | Universal |
| Drill Bit Diameter Tolerance | m7 |
| Standards | ISO; DIN |
| Flute Length (Decimal Inch) | 0.7874 |
| Flute Length (mm) | 20.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| Drill Bit Size Range (mm) | 3.50 - 5.00 |
| Specification Designation | DIN |
| Material Grade | K30F |
| UNSPSC Code | 23241635 |
