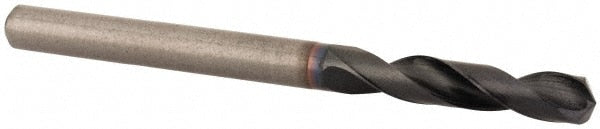

Screw Machine Length Drill Bit: 3/16" Dia, 135 deg Point, Solid Carbide
Item #: 59051979
Brand: Sumitomo
Model #: U101042
Product Specifications
| Drill Bit Size (Inch) | 3/16 |
| Drill Bit Size (Decimal Inch) | 0.1875 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 135 |
| Coolant Through | No |
| Primary Workpiece Material | Cast Iron; Steel |
| Point Type | Web-Thinned |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (Decimal Inch) | 2.4016 |
| Series | MDW-GS |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | DEX |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.7031 |
| Maximum Drilling Depth (mm) | 17.86 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 0.99 |
| Drill Point Length (Decimal Inch) | 0.0388 |
| Flute By Diameter Ratio | 2xD |
| Drill Bit Diameter Tolerance | h8 |
| Flute Length (Decimal Inch) | 0.9843 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| UNSPSC Code | 23241635 |
| Drill Bit Size (Inch) | 3/16 |
| Drill Bit Size (Decimal Inch) | 0.1875 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 135 |
| Coolant Through | No |
| Primary Workpiece Material | Cast Iron; Steel |
| Point Type | Web-Thinned |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (Decimal Inch) | 2.4016 |
| Series | MDW-GS |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | DEX |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.7031 |
| Maximum Drilling Depth (mm) | 17.86 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 0.99 |
| Drill Point Length (Decimal Inch) | 0.0388 |
| Flute By Diameter Ratio | 2xD |
| Drill Bit Diameter Tolerance | h8 |
| Flute Length (Decimal Inch) | 0.9843 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| UNSPSC Code | 23241635 |
| MSC Part # | 59051979 |
| Mfr Part # | U101042 |
| Country of Origin Country of Origin is subject to change | Japan |
