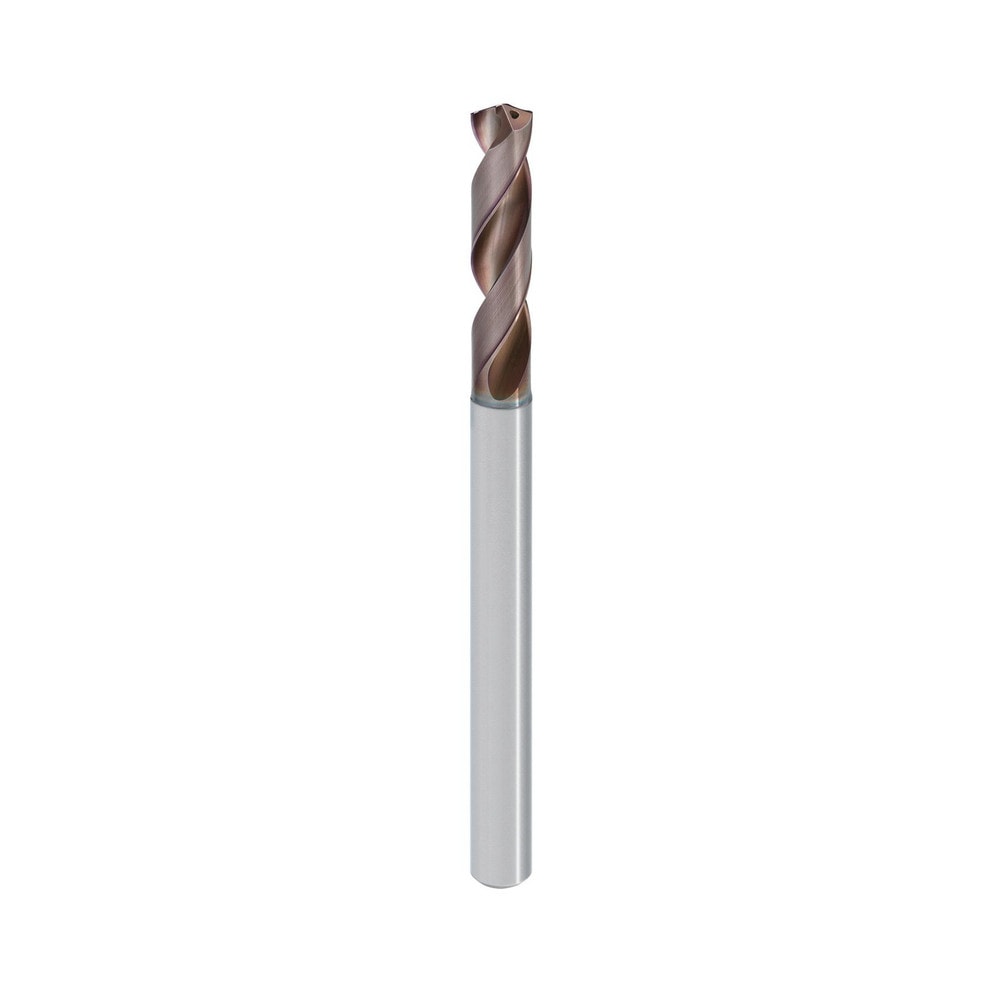

Extra Length Drill Bit: 0.3125", 140 °, Carbide
Item #: 03721347
Brand: Mitsubishi
Model #: 10544488
Product Specifications
| Drill Bit Size (Inch) | 5/16 |
| Drill Bit Size (mm) | 7.94 |
| Overall Length (mm) | 282.4480 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 225.40 |
| Point Type | X-Thinning |
| Series | MVS |
| Cutting Direction | Right Hand |
| Tool Application | Drilling; Cross Hole; Deep Hole Drilling; Stack Drilling |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Primary Workpiece Material | Alloy Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Bronze; Brass; Carbon Steel; Iron; Steel; High Strength Bronze; Tempered Steel; Hard Material; Stainless Steel; Cast Iron; Structural Steel; Superalloys & Titanium; Nickel; Copper; Nickel Alloy; Hardened Steel |
| Secondary Workpiece Material Code | S; H; K; M |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.3125 |
| Drill Point Length (mm) | 1.45 |
| Drill Point Length (Decimal Inch) | 0.0570 |
| Overall Length (Decimal Inch) | 11.1200 |
| Shank Diameter (Decimal Inch) | .3150 |
| Shank Diameter (mm) | 8.0010 |
| Shank Length (Decimal Inch) | 2.1260 |
| Shank Length (mm) | 54.000 |
| Flute Length (Decimal Inch) | 8.8740 |
| Flute By Diameter Ratio | 25xD |
| Maximum Drilling Depth (Decimal Inch) | 7.8680 |
| Maximum Drilling Depth (mm) | 199.85 |
| Material Grade | 1020 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
