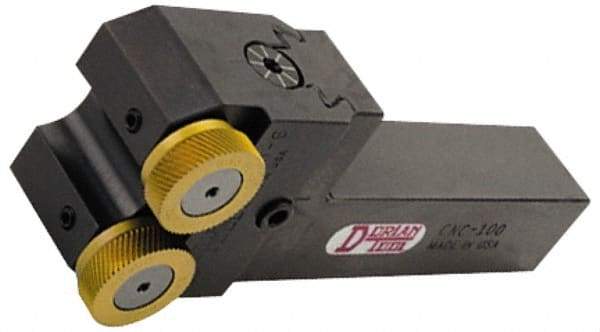

Dorian Tool - Neutral Cut, Diamond & Straight, 1/2" Wide 1/2" High x 4-3/8" Long Square Shank, Up-To-Shoulder Bump Knurlers - 2 Knurls Required (Included), 1/2" Diam x 5/32" Wide Face, Modular, Series SW
Item #: 64142870
Brand: Dorian Tool
Model #: 73310120120
Exact Tooling IR#: 04
Features and Benefits
Up-to-Shoulder bump knurlers are designed for knurling on the edge of the material. The knurl wheel is held with a pin instead of a supporting tab.
| Product Specifications | |
|---|---|
| Knurler Type | Up-To-Shoulder |
| Cutting Direction | Neutral |
| Shank Width/Diameter (Inch) | 1/2 |
| Shank Height (Inch) | 1/2 |
| Shank Length (Inch) | 4-3/8 |
| Knurl Diameter (Inch) | 1/2 |
| Knurl Diameter (mm) | 12.70 |
| Knurl Face Width (Inch) | 0.1560 |
| Knurl Face Width (mm) | 4.00 |
| Number of Knurls Required | 2 |
| Knurl Series | SW |
| Modular | Yes |
| Includes Knurl Wheels | Yes |
| Pattern | Diamond; Straight |
| Shank Shape | Square |
| Overall Length (Inch) | 4-3/8 |
