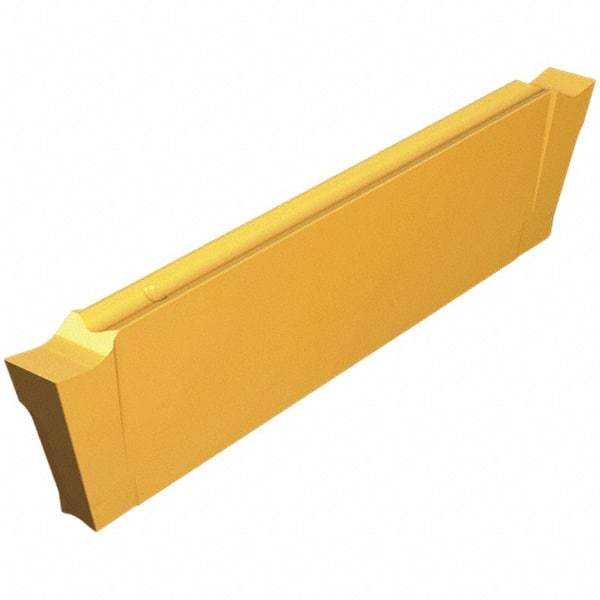

Iscar - 1500DGR P Grade IC508, 1.5mm Cutting Width Carbide Grooving Insert - 18mm Max Depth of Cut, Neutral, 0.05mm Corner Radius
Item #: 63996110
Brand: Iscar
Model #: 6002939
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DGR |
| Insert Size | 1500 |
| Material | Carbide |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0591 |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC508 |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Chipbreaker | P |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Coating Process | PVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | Do-Grip |
| Rake | Positive |
| ISO Number | DGR 1500P-15D |
| Manufacturers Catalog Number | DGR 1500P-15D |
