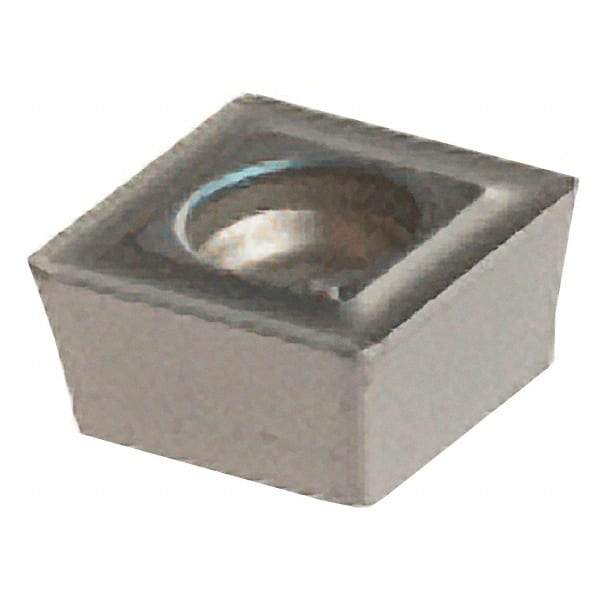

Iscar - SOMX050204 DT Grade IC1008 Carbide Indexable Drill Insert - TiAlN/TiN Finish, Square, 5.4mm Inscribed Circle
Item #: 63984470
Brand: Iscar
Model #: 5507426
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Insert Style | SOMX |
| Insert Size | 050204 |
| Material | Carbide |
| Manufacturer's Grade | IC1008 |
| Inscribed Circle (mm) | 5.40 |
| Inscribed Circle (Decimal Inch) | 0.2126 |
| Thickness (mm) | 2.40 |
| Thickness (Decimal Inch) | 0.0945 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Square |
| Included Angle | 90 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Chipbreaker | DT |
