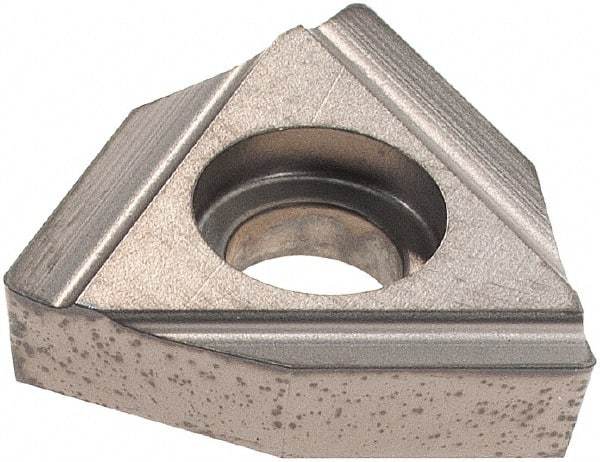

Komet - WOHX060304 G12 Grade P25M Carbide Boring Insert - Uncoated, 84° Trigon, 8° Relief Angle, 10mm Inscr Circle, 3.18mm Thick, 0.4mm Corner Radius
Item #: 63939144
Brand: Komet
Model #: W00341200403
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | WOHX |
| Insert Size | 060304 |
| Manufacturer's Grade | P25M |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating | Uncoated |
| Chipbreaker | G12 |
| Relief Angle | 8 |
| Included Angle | 84 |
| Cutting Direction | Left Hand |
| Shape | Trigon |
