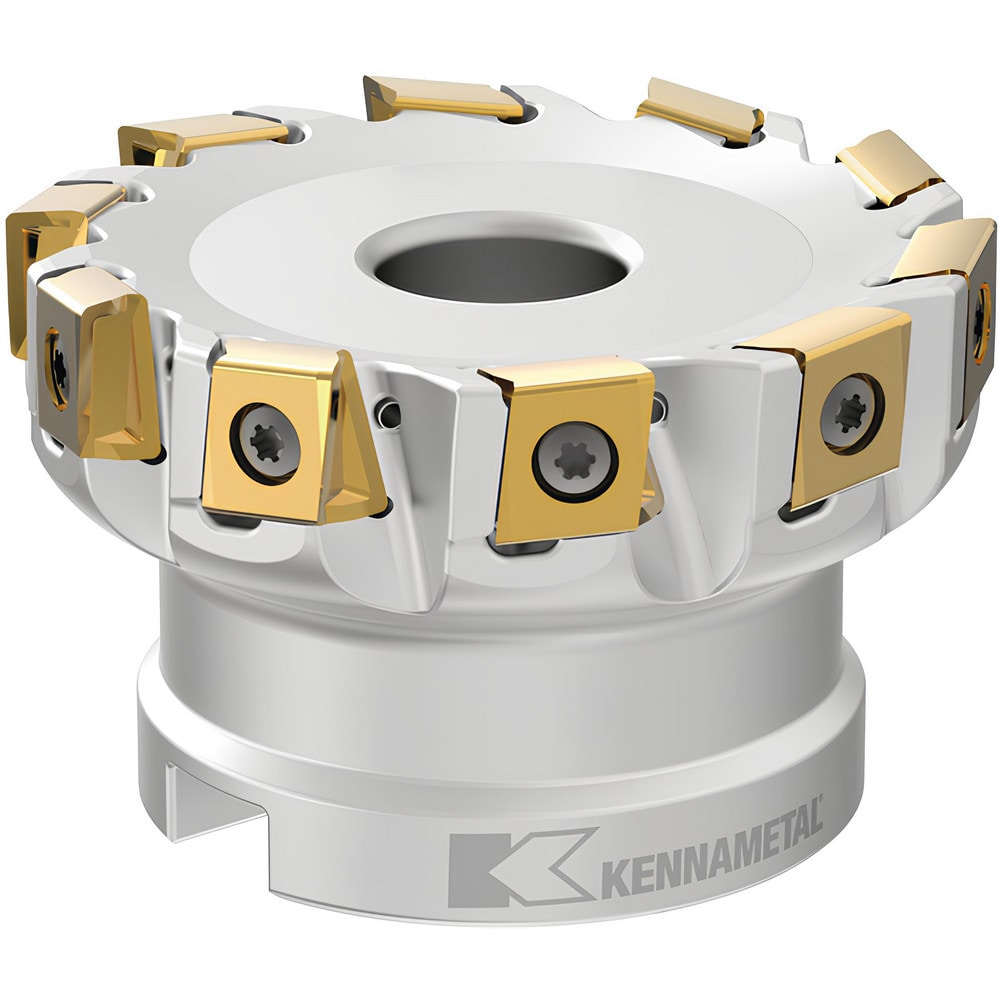

Indexable Square-Shoulder Face Mill: KT4D063Z07S22LN12
Item #: 59503805
Brand: Kennametal
Model #: 7009656
Product Specifications
| Minimum Cutting Diameter (mm) | 63.00 |
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 12.15 |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | 12 |
| Cutter Style | KT4 |
| Cutting Direction | Left Hand |
| Insert Holding Method | Screw Clamping |
| Lead Angle | 90 |
| Rake | Neutral |
| Series | Mill 4-12KT |
| Overall Height (Mm - 5 Decimals) | 40.00 |
| Keyway Width (mm) | 10.46 |
| Hub Diameter (mm) | 49.00 |
| Complete Insert Compatibility | LNGQ12-GE |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | KT4D063Z07S22LN12 |
| Coolant Through | No |
| Number Of Cutter Inserts | 7 |
| Minimum Cutting Diameter (mm) | 63.00 |
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 12.15 |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | 12 |
| Cutter Style | KT4 |
| Cutting Direction | Left Hand |
| Insert Holding Method | Screw Clamping |
| Lead Angle | 90 |
| Rake | Neutral |
| Series | Mill 4-12KT |
| Overall Height (Mm - 5 Decimals) | 40.00 |
| Keyway Width (mm) | 10.46 |
| Hub Diameter (mm) | 49.00 |
| Complete Insert Compatibility | LNGQ12-GE |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | KT4D063Z07S22LN12 |
| Coolant Through | No |
| Number Of Cutter Inserts | 7 |
| MSC Part # | 59503805 |
| Mfr Part # | 7009656 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
