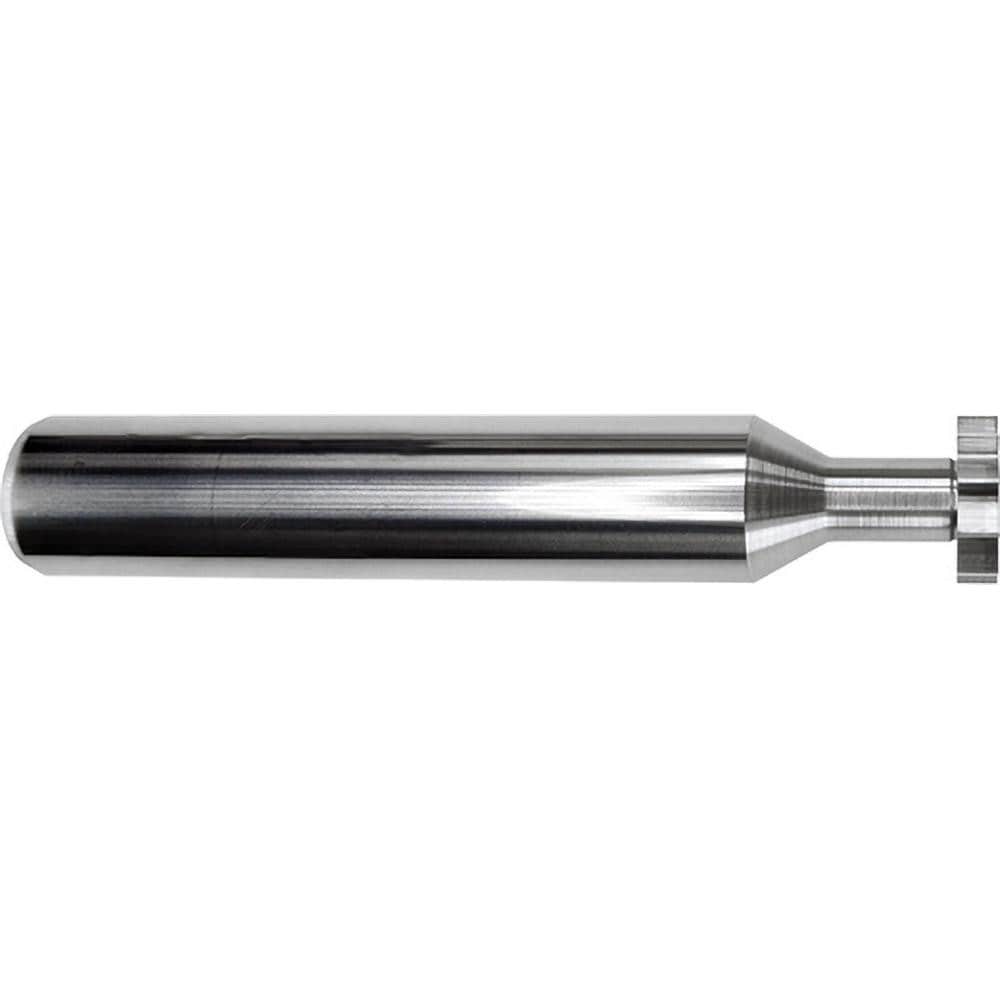

Woodruff Keyseat Cutter: 1/4" Cut Dia, 3/64" Cut Width, 1/4" Shank Dia, Straight Tooth
Item #: 61683777
Brand: Internal Tool
Model #: 77-1930
Product Specifications
| Connection Type | Shank |
| Cutter Material | Solid Carbide |
| Cutter Diameter (Inch) | 1/4 |
| Cutter Diameter (Decimal Inch) | 0.2500 |
| Tooth Configuration | Straight |
| Cutting Width (Inch) | 3/64 |
| Cutting Width (Decimal Inch) | 0.0460 |
| Weldon Flat | No |
| Neck Diameter (Decimal Inch) | 0.1250 |
| Neck Length (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Cutter Material Grade | Micrograin |
| Series | 77 |
| Cutting Width Tolerance (Decimal Inch) | +0.0005/-0.0000 |
| Coating/Finish | Bright/Uncoated |
| Number Of Teeth | 6 |
| UNSPSC Code | 23241631 |
| Connection Type | Shank |
| Cutter Material | Solid Carbide |
| Cutter Diameter (Inch) | 1/4 |
| Cutter Diameter (Decimal Inch) | 0.2500 |
| Tooth Configuration | Straight |
| Cutting Width (Inch) | 3/64 |
| Cutting Width (Decimal Inch) | 0.0460 |
| Weldon Flat | No |
| Neck Diameter (Decimal Inch) | 0.1250 |
| Neck Length (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Cutter Material Grade | Micrograin |
| Series | 77 |
| Cutting Width Tolerance (Decimal Inch) | +0.0005/-0.0000 |
| Coating/Finish | Bright/Uncoated |
| Number Of Teeth | 6 |
| UNSPSC Code | 23241631 |
| MSC Part # | 61683777 |
| Mfr Part # | 77-1930 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
