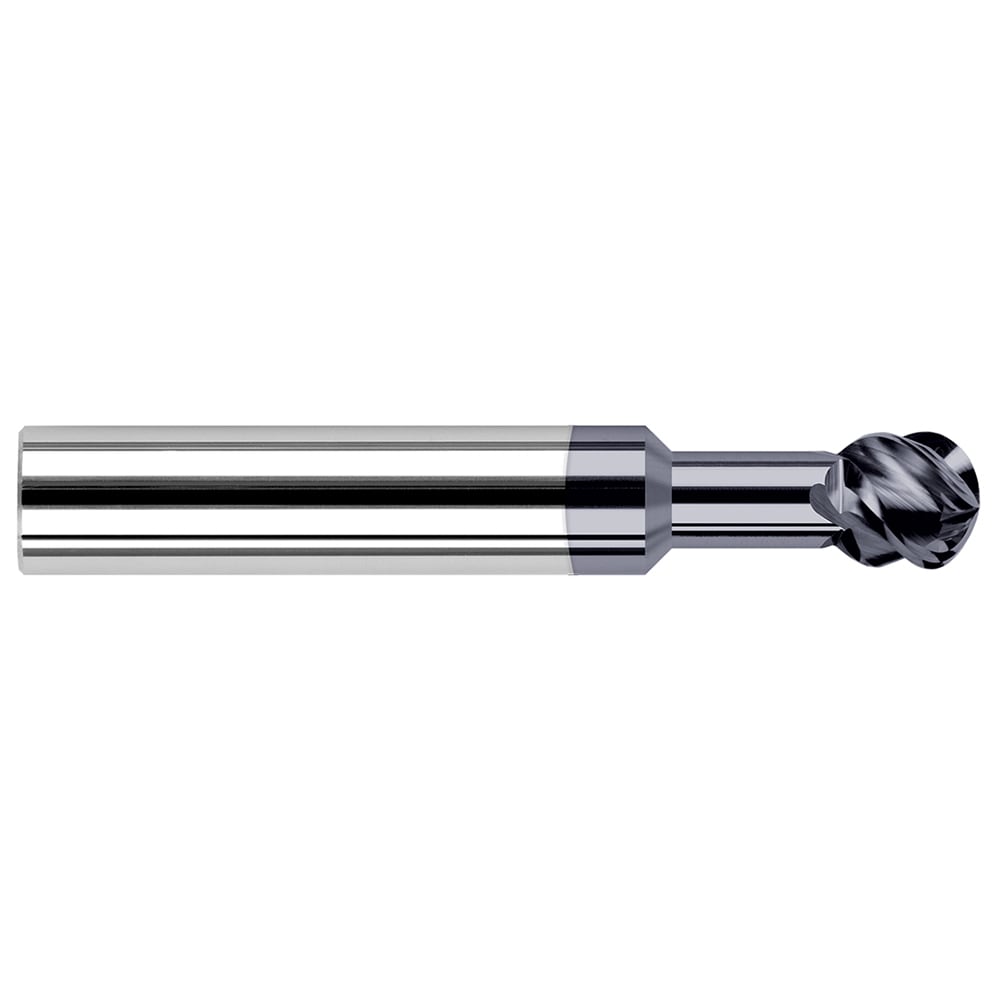

Undercutting End Mills; Mill Diameter (Decimal Inch): 0.1250; Mill Diameter (Inch): 1/8; Length Of Cut (Decimal Inch - 4 Decimals): 0.1070; Overall Length (Inch): 2; Radius: 0.0625; Number Of Flutes: 4; Neck Length (Decimal Inch): 0.7500; Neck Diameter (D
Item #: 93273092
Brand: Harvey Tool
Model #: 897708-C3
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1250 |
| Mill Diameter (Inch) | 1/8 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1070 |
| Overall Length (Inch) | 2 |
| Radius | 0.0625 |
| Number Of Flutes | 4 |
| Neck Length (Decimal Inch) | 0.7500 |
| Neck Diameter (Decimal Inch) | 0.0760 |
| Coating/Finish | AlTiN |
| Helix Angle | 45 |
| Shank Diameter (Inch) | 1/8 |
| Variable Helix | No |
| Variable Index | No |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| End Mill Material | Solid Carbide |
| Wrap Angle (Degrees) | 270 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
