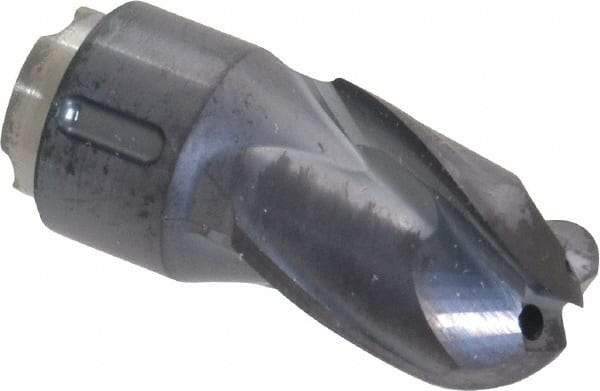

Seco - MP10 M03 Grade MP3000 Carbide Milling Tip Insert - TiAlN Finish, 3 Flutes, 3/8" Cutting Diam, 0.472" Depth of Cut, 0.826" Extension, 3/16" Cnr Rad
Item #: 63475396
Brand: Seco
Model #: 45293
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Milling Tip Style | MP10 |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Material Grade | C5 |
| Manufacturer's Grade | MP3000 |
| Depth of Cut (Decimal Inch) | 0.4720 |
| Number of Flutes | 3 |
| Coating | TiAlN |
| Corner Radius (Decimal Inch) | 0.1870 |
| Coating Process | PVD |
| Chipbreaker | M03 |
| Extension From Holder (Decimal Inch) | 0.8260 |
| Style | MP10-0.375B90Z3 |
