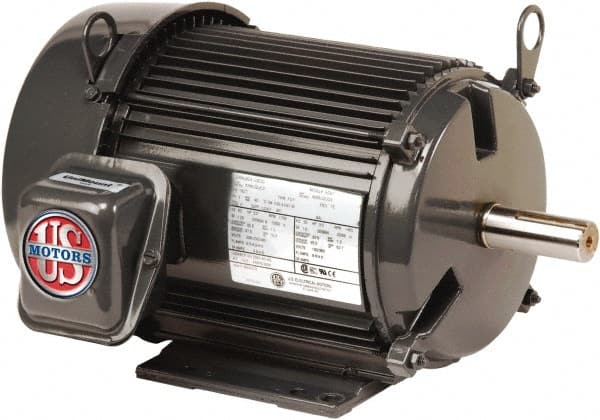

10 hp, TEFC Enclosure, 1,445 & 1,760 RPM, 208-230/460 & 190/380 Volts, 60/50 hz Three Phase Premium Efficient Motor Size 215 Frame, Single Speed, Horizontal-Footed Mount, Double Shielded Ball Bearing
Item #: 63067334
Brand: US Motors
Model #: U10P2D
Product Specifications
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Motor Design | 3-Phase |
| Horsepower | 10 W; 10 h; 10 hp; 10 hp old; 10 |
| Thermal Protection Rating | None |
| Enclosure Style | TEFC |
| Horse Power | 10 W; 10 h; 10 hp; 10 hp old |
| Name Plate RPMs | 1760, 1445 |
| Voltage | 208-230/460 & 190/380 |
| Nameplate Rpm | 1760 RPM |
| Frequency Hz | 60/50 Hz; 60/50 |
| Frame Size | 215 |
| Mount Type | Horizontal-Footed |
| Number of Speeds | 1 |
| Bearing Type | Double Shielded Ball |
| Number Of Phases | 1 |
| Application | General Equipment |
| Full Load Amperage | 26.5-23.9/12 |
| Service Factor Rating | 1.0 |
| Applications | General Equipment |
| Insulation Class | F |
| Frame Material | Aluminum |
| Service Factor Rating | 1 |
| Motor Rotation | Dual |
| Phase | 3 |
| PSC Code | 6105 |
