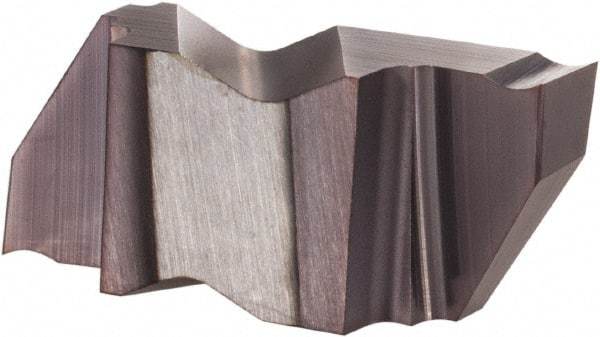

Hertel - 3125IG Grade HC225, 1/8" Cutting Width Carbide Grooving Insert - 0.18" Max Depth of Cut, Right Hand, .005 to .010" Corner Radius, TiAlN Finish
Item #: 62831284
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | IG |
| Insert Size | 3125 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (Decimal Inch) | 0.1800 |
| Manufacturer's Grade | HC225 |
| Coating | TiAlN |
| Insert Hand | Right Hand |
| Cutting Height (Decimal Inch) | 0.3440 |
| Lead Angle | 0 |
| Relief Angle | 3 |
| Insert Seat Size | 3 |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0050 |
| Maximum Corner Radius (Decimal Inch) | 0.0100 |
| Corner Radius (Decimal Inch) | .005-.010 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 1.1556 |
| Series | HertelNotch |
| Rake | Neutral |
| Manufacturers Catalog Number | IG3125RK HC225 |
| Overall Width (Decimal Inch) | 0.1250 |
| Insert Thickness (Decimal Inch) | 0.4950 |
| Internal Relief Angle | 3 |
