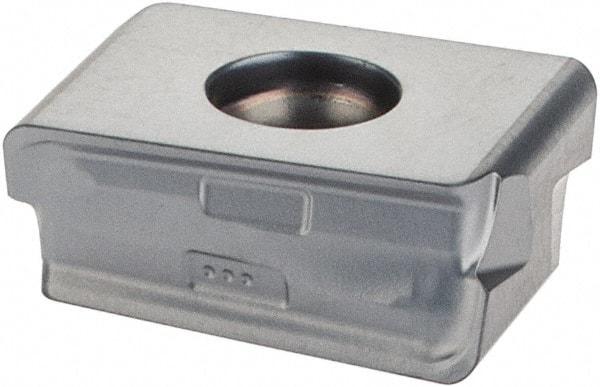

Iscar - HTP LNHT1606 ER Grade IC328 Carbide Milling Insert - TiCN Finish, 0.4748" Thick, 1.2mm Corner Radius
Item #: 62577077
Brand: Iscar
Model #: 5605790
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HTP LNHT |
| Insert Size | 1606 |
| Material | Carbide |
| Material Grade | C2/C3/C5/C6 |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Width (Decimal Inch) | 0.2559 |
| Length (Decimal Inch) | 0.6496 |
| Thickness (Decimal Inch) | 0.4748 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | ER |
| ISO Number | HTP LNHT 1606 ER |
