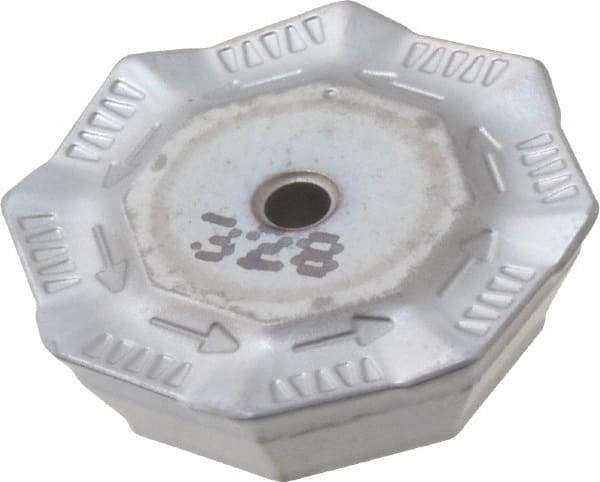

Iscar - OFMR0704 76 Grade IC328 Carbide Milling Insert - TiCN Finish, 0.1791" Thick, 0.7008" Inscribed Circle, 0.6mm Corner Radius
Item #: 62293139
Brand: Iscar
Model #: 5601750
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | OFMR |
| Insert Size | 0704 |
| Material | Carbide |
| Material Grade | C2/C3/C5/C6 |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Width (Decimal Inch) | 0.7008 |
| Inscribed Circle (Decimal Inch) | 0.7008 |
| Thickness (Decimal Inch) | 0.1791 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Corner Radius (mm) | 0.60 |
| Relief Angle | 25.000 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 135 |
| Shape | Octagon |
| Insert Hand | Right Hand |
| Chipbreaker | 76 |
| ISO Number | OFMR 0704-AER-76 |
