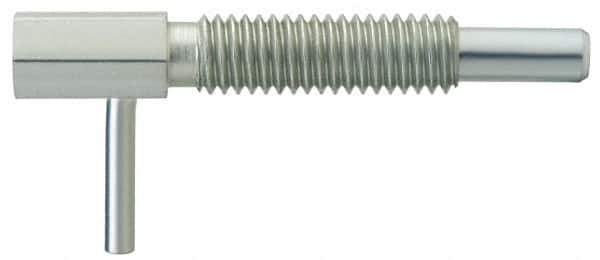

Vlier - M10x1.5, 1.17" Thread Length, 6mm Plunger Diam, 3.3 N Init to 16.7 N Final End Force, Stainless Steel Locking L Handle Plunger - 51mm Body Length, 33mm Length Under Head, Locking Element, 14mm Plunger Projection
Item #: 62125000
Brand: Vlier
Model #: SFRM10P
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M10x1.5 |
| Thread Length (mm) | 29.72 |
| Thread Length (Decimal Inch) | 1.1700 |
| Plunger Type | Locking |
| Body Length (mm) | 51.00 |
| Length Under Head (mm) | 33.00 |
| Plunger Projection (mm) | 14.00 |
| Plunger Diameter (mm) | 6.00 |
| Locking Element | Yes |
| Material | Stainless Steel |
| Handle Length (mm) | 19.00 |
| Initial End Force (N) | 3.30 |
| Final End Force (N) | 16.70 |
| Plunger Length (Decimal Inch) | 2.0000 |
| Plunger Length (mm) | 50.80 |
| Head Height (mm) | 17.78 |
| Head Height (Decimal Inch) | 0.7000 |
| Handle Diameter (mm) | 3.50 |
| Hex Size (mm) | 10.00 |
| Length Between Head And Thread (mm) | 3.30 |
