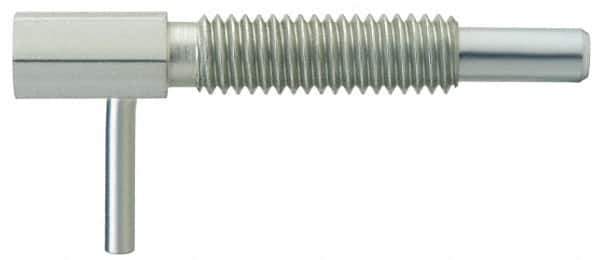

Vlier - M6x1.0, 0.788" Thread Length, 4mm Plunger Diam, 2.2 N Init to 11.1 N Final End Force, Stainless Steel Locking L Handle Plunger - 32mm Body Length, 20mm Length Under Head, Locking Element, 10mm Plunger Projection
Item #: 62124987
Brand: Vlier
Model #: SFRM6P
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M6x1.0 |
| Thread Length (mm) | 20.02 |
| Thread Length (Decimal Inch) | 0.7880 |
| Plunger Type | Locking |
| Body Length (mm) | 32.00 |
| Length Under Head (mm) | 20.00 |
| Plunger Projection (mm) | 10.00 |
| Plunger Diameter (mm) | 4.00 |
| Locking Element | Yes |
| Material | Stainless Steel |
| Handle Length (mm) | 12.70 |
| Initial End Force (N) | 2.20 |
| Final End Force (N) | 11.10 |
| Plunger Length (Decimal Inch) | 1.2600 |
| Plunger Length (mm) | 32.00 |
| Head Height (mm) | 11.94 |
| Head Height (Decimal Inch) | 0.4700 |
| Handle Diameter (mm) | 2.30 |
| Hex Size (mm) | 6.00 |
