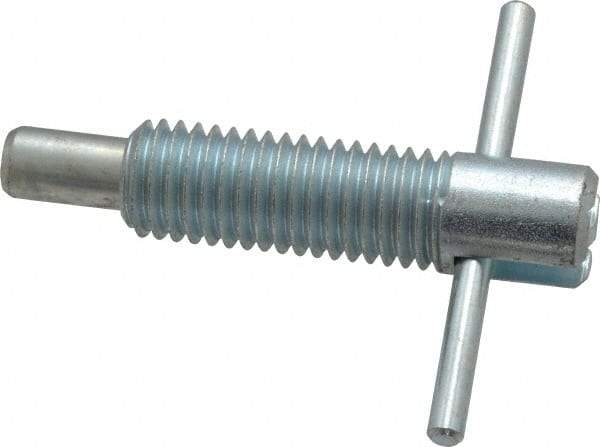

Vlier - 5/8-11 Thread, 2-1/2" Body Length, 5/8" Plunger Projection, 3/8" Plunger Diam, Steel, Locking T Handle Plunger - 1.7" Thread Length, 2-1/2" Handle Length, 2.38" Plunger Length, 2-1/2 Lb Initial End Force, 5 Lb Final End Force,
Item #: 62124342
Brand: Vlier
Model #: FRT625
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Thread Size | 5/8-11 |
| Thread Length (Decimal Inch) | 1.7000 |
| Plunger Type | Locking |
| Body Length (Decimal Inch) | 2.5000 |
| Plunger Projection (Decimal Inch) | 0.6250 |
| Plunger Diameter (Decimal Inch) | 0.3750 |
| Locking Element | No |
| Initial End Force (Lb.) | 2.50 |
| Final End Force (Lb.) | 5.00 |
| Plunger Length (Decimal Inch) | 2.3800 |
| Handle Width/Diameter (Decimal Inch) | 0.1900 |
| Handle Length (Decimal Inch) | 2.5000 |
| Material | Steel |
