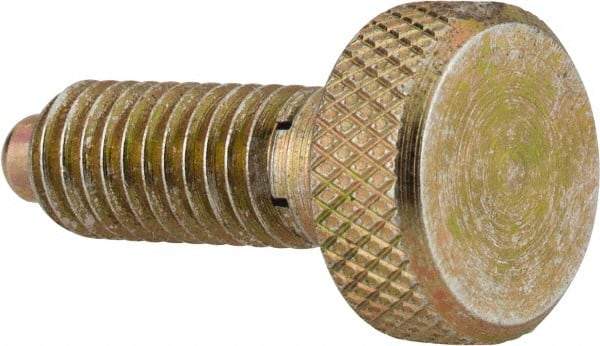

Vlier - M6x1.0, 0.512" Thread Length, 0.118" Max Plunger Diam, 1 Lb Init to 4 Lb Final End Force, Knob Handle Plunger - Knurled Knob, 0.63" Body Length, 0.512" Length Under Head/Shoulder, 0.118" Plunger Projection
Item #: 62124151
Brand: Vlier
Model #: SSLM6P
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M6x1.0 |
| Thread Length (mm) | 13.00 |
| Thread Length (Decimal Inch) | 0.5120 |
| Plunger Type | Non-Locking |
| Knob Style | Knurled |
| Body Length (mm) | 16.00 |
| Body Length (Decimal Inch) | 0.6300 |
| Length Under Head/Shoulder (mm) | 13.00 |
| Length Under Head/Shoulder (Decimal Inch) | 0.5120 |
| Plunger Projection (mm) | 3.00 |
| Plunger Projection (Decimal Inch) | 0.1180 |
| Maximum Plunger Diameter (mm) | 3.00 |
| Maximum Plunger Diameter (Decimal Inch) | 0.1180 |
| Initial End Force (N) | 4.45 |
| Initial End Force (Lb.) | 1.00 |
| Final End Force (N) | 17.80 |
| Final End Force (Lb.) | 4.00 |
| Locking Element | Yes |
| Plunger Length (mm) | 21.01 |
| Plunger Length (Decimal Inch) | 0.8270 |
| Head Diameter (mm) | 13.00 |
| Head Diameter (Decimal Inch) | 0.5120 |
| Head Height (mm) | 5.00 |
| Head Height (Decimal Inch) | 0.1970 |
| Head & Shoulder Height (mm) | 8.00 |
| Head & Shoulder Height (Decimal Inch) | 0.3150 |
| Material | Stainless Steel |
| Plunger Diameter Tolerance (mm) | +0.000/-0.0254 |
| Plunger Diameter Tolerance (Decimal Inch) | +0.000/-0.001 |
