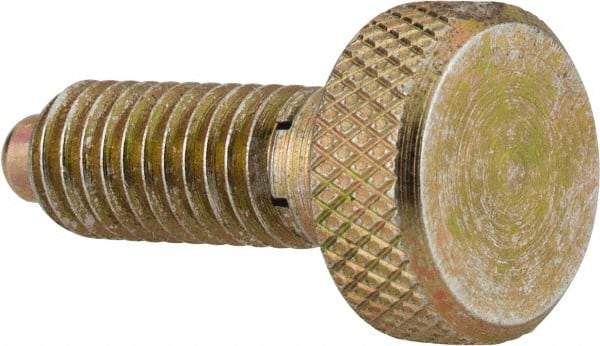

Vlier - M5x0.8, 0.394" Thread Length, 0.0984" Max Plunger Diam, 0.5 Lb Init to 3 Lb Final End Force, Knob Handle Plunger - Knurled Knob, 0.47" Body Length, 0.394" Length Under Head/Shoulder, 0.078" Plunger Projection
Item #: 62124060
Brand: Vlier
Model #: SLM5P
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M5x0.8 |
| Thread Length (mm) | 10.00 |
| Thread Length (Decimal Inch) | 0.3940 |
| Plunger Type | Non-Locking |
| Knob Style | Knurled |
| Body Length (mm) | 11.94 |
| Body Length (Decimal Inch) | 0.4700 |
| Length Under Head/Shoulder (mm) | 10.01 |
| Length Under Head/Shoulder (Decimal Inch) | 0.3940 |
| Plunger Projection (mm) | 2.00 |
| Plunger Projection (Decimal Inch) | 0.0780 |
| Maximum Plunger Diameter (mm) | 2.50 |
| Maximum Plunger Diameter (Decimal Inch) | 0.0984 |
| Initial End Force (N) | 2.22 |
| Initial End Force (Lb.) | 0.50 |
| Final End Force (N) | 13.34 |
| Final End Force (Lb.) | 3.00 |
| Locking Element | Yes |
| Plunger Length (mm) | 16.00 |
| Plunger Length (Decimal Inch) | 0.6300 |
| Head Diameter (mm) | 9.00 |
| Head Diameter (Decimal Inch) | 0.3550 |
| Head Height (mm) | 4.00 |
| Head Height (Decimal Inch) | 0.1570 |
| Head & Shoulder Height (mm) | 6.00 |
| Head & Shoulder Height (Decimal Inch) | 0.2360 |
| Material | Steel |
| Finish/Coating | Zinc Gold Chromate |
| Plunger Diameter Tolerance (mm) | +0.000/-0.0254 |
| Plunger Diameter Tolerance (Decimal Inch) | +0.000/-0.001 |
