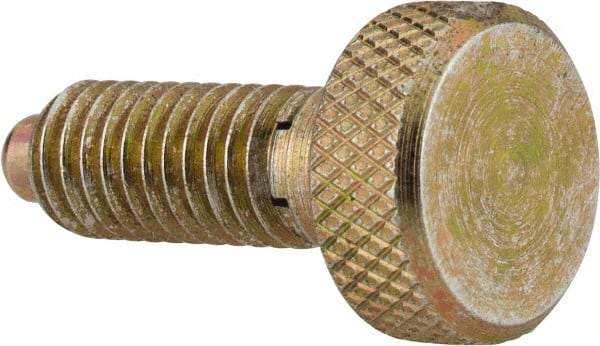

Vlier - M10x1.5, 3/4" Thread Length, 0.19" Max Plunger Diam, 1 Lb Init to 8 Lb Final End Force, Knob Handle Plunger - Knurled Knob, 0.95" Body Length, 3/4" Length Under Head/Shoulder, 0.236" Plunger Projection
Item #: 62124011
Brand: Vlier
Model #: SLM10
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M10x1.5 |
| Thread Length (mm) | 19.00 |
| Thread Length (Decimal Inch) | 0.7480 |
| Plunger Type | Non-Locking |
| Knob Style | Knurled |
| Body Length (mm) | 24.13 |
| Body Length (Decimal Inch) | 0.9500 |
| Length Under Head/Shoulder (mm) | 19.00 |
| Length Under Head/Shoulder (Decimal Inch) | 0.7480 |
| Plunger Projection (mm) | 6.00 |
| Plunger Projection (Decimal Inch) | 0.2360 |
| Maximum Plunger Diameter (mm) | 5.00 |
| Maximum Plunger Diameter (Decimal Inch) | 0.1900 |
| Initial End Force (N) | 4.45 |
| Initial End Force (Lb.) | 1.00 |
| Final End Force (N) | 35.60 |
| Final End Force (Lb.) | 8.00 |
| Locking Element | No |
| Plunger Length (mm) | 32.00 |
| Plunger Length (Decimal Inch) | 1.2600 |
| Head Diameter (mm) | 19.00 |
| Head Diameter (Decimal Inch) | 0.7480 |
| Head Height (mm) | 8.00 |
| Head Height (Decimal Inch) | 0.3150 |
| Head & Shoulder Height (mm) | 13.00 |
| Head & Shoulder Height (Decimal Inch) | 0.5120 |
| Material | Steel |
| Finish/Coating | Zinc Gold Chromate |
| Plunger Diameter Tolerance (mm) | +0.000/-0.0254 |
| Plunger Diameter Tolerance (Decimal Inch) | +0.000/-0.001 |
