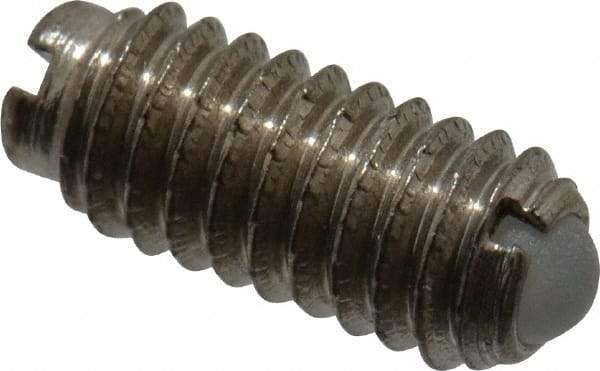

Vlier - 6-40, 0.078" Ball Diam, 0.312" Body Length, 0.023" Max Ball Reach, Threaded Ball Plunger - Stainless Steel Body, Nylon Ball, 0.5 Lb Initial End Force, 1 Lb Final End Force, Locking Element
Item #: 62122825
Brand: Vlier
Model #: DSSB48P
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Nylon balls are ideal for applications where products or components are made mostly or entirely of plastic. They are lightweight, highly durable and non-marring.
| Product Specifications | |
|---|---|
| Thread Size | 6-40 |
| Body Length (Decimal Inch) | 0.3120 |
| Body Material | Stainless Steel |
| Ball Material | Nylon |
| Initial End Force (Lb.) | 0.50 |
| Final End Force (Lb.) | 1.00 |
| Locking Element | Yes |
| Ball Diameter (Decimal Inch) | 0.0780 |
| Finish/Coating | Zinc Plated |
| Maximum Ball Reach (Decimal Inch) | 0.0230 |
