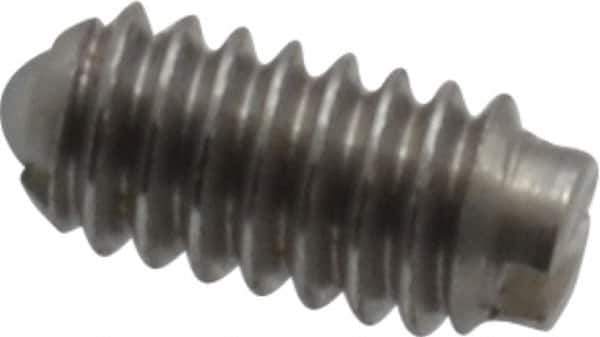

Vlier - 5-40, 0.062" Ball Diam, 0.25" Body Length, 0.02" Max Ball Reach, Threaded Ball Plunger - Stainless Steel Body, Nylon Ball, 0.25 Lb Initial End Force, 0.75 Lb Final End Force
Item #: 62122791
Brand: Vlier
Model #: DSSB47
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Nylon balls are ideal for applications where products or components are made mostly or entirely of plastic. They are lightweight, highly durable and non-marring.
| Product Specifications | |
|---|---|
| Thread Size | 5-40 |
| Body Length (Decimal Inch) | 0.2500 |
| Body Material | Stainless Steel |
| Ball Material | Nylon |
| Initial End Force (Lb.) | 0.25 |
| Final End Force (Lb.) | 0.75 |
| Locking Element | No |
| Ball Diameter (Decimal Inch) | 0.0620 |
| Finish/Coating | Zinc Plated |
| Maximum Ball Reach (Decimal Inch) | 0.0200 |
